Product Details:
|
| Product Name: | Six Axis Force Sensor | Capacity: | Fx,Fy=100N, Fz=200N; Mx,My,Mz=10Nm |
|---|---|---|---|
| Weight: | 0.30kg | Precision: | 0.1%F.S. |
| Diameter: | 94mm | Height: | 26mm |
| High Light: | analog multi axis force torque sensor,aluminum multi axis force torque sensor,200n load cell sensor |
||

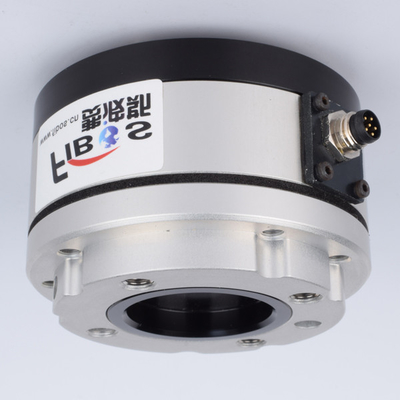

Fx Fy 100N Fz 200N Mx My Mz 10Nm 0.1%F.S. Hard Aluminum Alloy Six Axis Force Sensor
1. Descriptions
Fx Fy 100N Fz 200N Mx My Mz 10Nm 0.1%F.S. Hard Aluminum Alloy Six Axis Force Sensor FARS94A is a model of Six Axis Force Sensor, it belongs to FARS94 in our brand FIBOS FARS-Series, it can be used to measure multi-axis load Fx,Fy are 100N, Fz is 200N, Mx,My,Mz all are 10Nm, its Diameter is 94mm and Height is 26mm, its Material is Hard aluminum alloy.
2. Specifications
| Product name | Six Axis Force Sensor | ||||
| Model | FARS94A | ||||
| Fx, Fy [N] | 100 | ||||
| Fz [N] | 200 | ||||
| Mx,My[Nm] | 10 | ||||
| Mz [Nm] | 10 | ||||
| Diameter [mm] | 94 | ||||
| Height [mm] | 26 | ||||
| Material | Hard aluminum alloy | ||||
| Overload Level[%F.S.] | 300 | ||||
| Precision [%F.S.] | 0.1 | ||||
| Accuracy [%F.S.] | 0.5 | ||||
| Weight [kg] | 0.30 | ||||
| Supply voltage [VDC] | 9-24 | ||||
| Working Temperature[℃] | 0-80 | ||||
| Sampling Resolution [Bit] | 24 | ||||
| Sampling Frequency [Hz] | 1000 | ||||
| Protection Level | IP64 | ||||
| Communication Method | RS422/RS485/MODBUS/CAN/EtherCAT/EtherNET/USB/Analog | ||||
3. Dimension
4. Application
Fx Fy 100N Fz 200N Mx My Mz 10Nm 0.1%F.S. Hard Aluminum Alloy Six Axis Force Sensor FARS94A is applied in robotic industry.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
