Product Details:
|
| Product Name: | Single Point Weight Sensor | Capacity: | 0.22,0.55,1.1,1.76,2.2,4.4t |
|---|---|---|---|
| Rated Output: | 1.94±0.1%mV/V | Non-linearity: | ≤0.017%F.S. |
| Repeatability: | ≤0.017%F.S. | Material: | Stainless Steel |
| High Light: | 4.4t Weighing Force Sensor,Shear Beam Weighing Force Sensor |
||
1. Descriptions

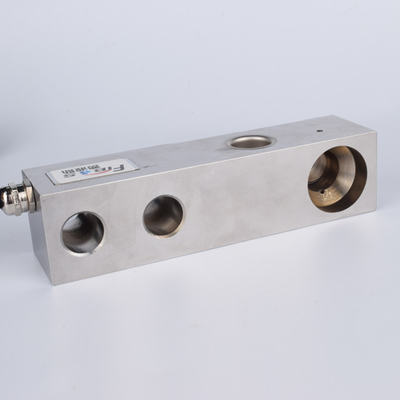

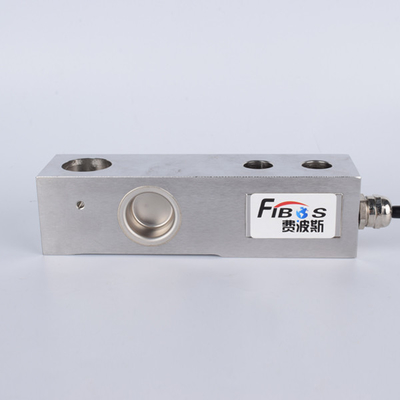

0.22t 0.55t 1.1t 1.76t 2.2t 4.4t ≤0.017%F.S. Stainless Steel Shear Beam Load Cell FA509 is a model of our brand FIBOS FA5-Series, Shear Beam Load Cell FA509 can be used to measure weight 0.22t,0.55t,1.1t,1.76t,2.2t and 4.4t, its Rated output range is 1.94±0.1%mV/V, its Creep(30min) ≤0.0166%F.S., its Non-linearity,Hysteresis and Repeatability all ≤0.017%F.S..
2. Specifications
| Product name | Shear Beam Load Cell |
| Capacity | 0.22,0.55,1.1,1.76,2.2,4.4t |
| Rated output | 1.94±0.1%mV/V |
| Zero Balance | ±2%mV/V |
| Creep(30min) | ≤0.0166%F.S. |
| Non-linearity | ≤0.017%F.S. |
| Hysteresis | ≤0.017%F.S. |
| Repeatability | ≤0.017%F.S. |
| Input impedance | 390±3Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.014%F.S./10 ℃ |
| Temp.effect on zero | 0.012%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀5.4x1.5m |
| Material | Stainless steel |
3. Dimension
4. Application
0.22t 0.55t 1.1t 1.76t 2.2t 4.4t ≤0.017%F.S. Stainless Steel Shear Beam Load Cell FA509 can be applied to platform scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
