Product Details:
|
| Product Name: | Column Type Load Cell | Capacity: | 500,1000,2000,5000,10000N Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.05%F.S. Or Customized | Non-linearity: | ≤0.05%F.S. Or Customized |
| Hysteresis: | ≤0.05%F.S. Or Customized | Repeatability: | ≤0.05%F.S. Or Customized |
| High Light: | 200N Column Type Load Cell,Column Tensile Compressive Force Sensors |
||

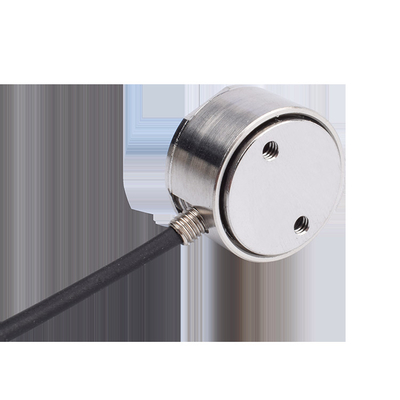

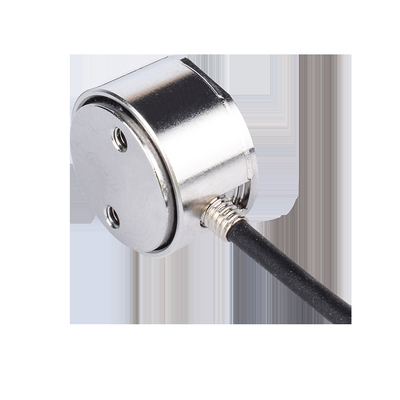

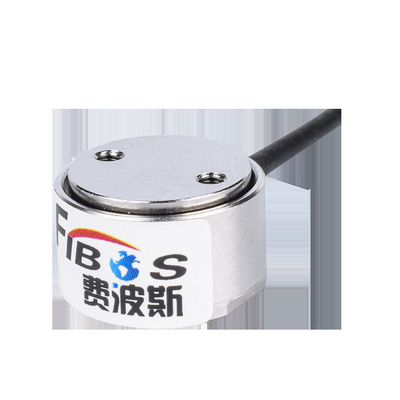

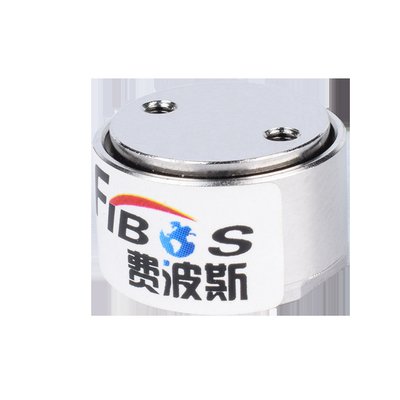

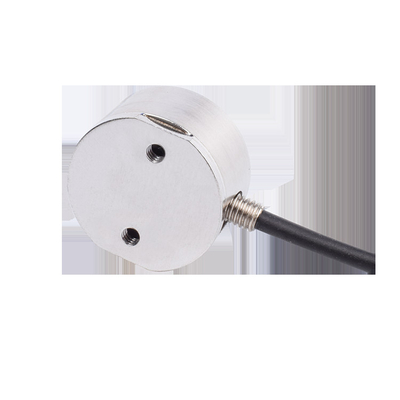

10~200N Column Type Load Cell 0.1kg Weight Tensile-Compressive Force Sensors
1. Descriptions
500,1000,2000,5000,10000N Or Customized Column Type Load Cell FA402B is a model of Column Type Load Cell, it belongs to FA402 in our brand FIBOS FA4-Series, FA402B could measure load 500N, 1000N, 2000N, 5000N and 10000N or customized Capacity, its Creep(30min), Non-linearity, Hysteresis, Repeatability all ≤0.05%F.S. or could be customized, its weight is 0.1kg or customized.
2. Specifications
| Product name | Column Type Load Cell |
| Capacity | 500,1000,2000,5000,10000N or customized |
| Rated output | 2.0±10%mV/V |
| Zero Balance | ±0.05mV/V |
| Creep(30min) | ≤0.05%F.S. or customized |
| Non-linearity | ≤0.05%F.S. or customized |
| Hysteresis | ≤0.05%F.S. or customized |
| Repeatability | ≤0.05%F.S. or customized |
| Input impedance | 350±5Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀3x3000mm or customized |
| Weight | 0.1kg or customized |
| Material | Stainless steel or customized |
3. Dimension
Need to be customized
4. Application
500,1000,2000,5000,10000N Or Customized Column Type Load Cell FA402B could also be applied in silos and platform scales such like FA402.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
