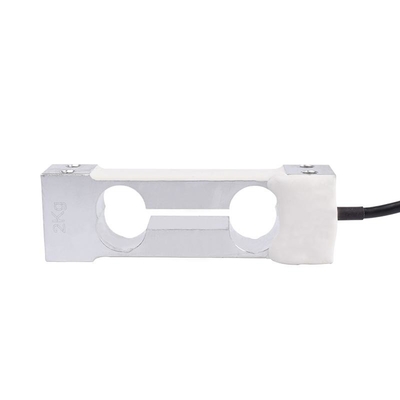

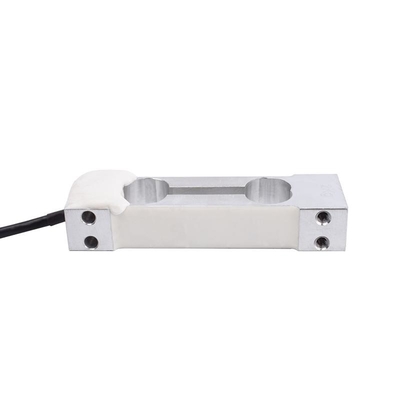

FIBOS FA504 Shear Beam Load Cell 3kg,6kg,10kg,20kg,30kg For Belt Weighing
Features
Shear beam load cell 3kg,6kg,10kg,20kg,30kg FA504 measures force with mV/V output from the wheatstone bridge. The cantilever beam sensor configuration allows for precise measurement results up to accuracy class C3. The non-linearity of this bending beam load cell can be achieved maximum 0.015%F.S.
Applications
Mounting Dimension
Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 3,6,10,20 ,30kg |
| Accuracy class | C3 |
| Rated output | 2.0±10%mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.015%F.S. |
| Hysteresis | 0.015%F.S. |
| Repeatability | 0.02%F.S. |
| Creep(30min) | 0.017%F.S. |
| Temp.effect on output | 0.02%F.S./10℃ |
| Temp.effect on zero | 0.02%F.S./10℃ |
| Input impedance | 405±10Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~40℃ |
| Operation temp range | -20~60℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| Cable size | Φ4×3000mm |
| Material | aluminum alloy |
| IP Class | IP65 |
| Max.platform size | 300mm×300mm |
FIBOS is a high-tech enterprise engaged in the technology development and sales of sensors, mainly providing force sensors, transmitters, control instruments and other products. FIBOS specializes in custom design and development of load cells and solutions. We can provide perfect force sensors and system solutions according to customer's situation.
