Product Details:
|
| Category: | Beam Load Cells | Capacity: | 10,20,50,100,200,500kg |
|---|---|---|---|
| Rated Output: | 2.0±0.05mV/V | Material: | Stainless Steel |
| High Light: | Bending Beam Weight Load Cell,500kg Beam Weight Load Cell,FA509 Bending Beam Load Cell |
||

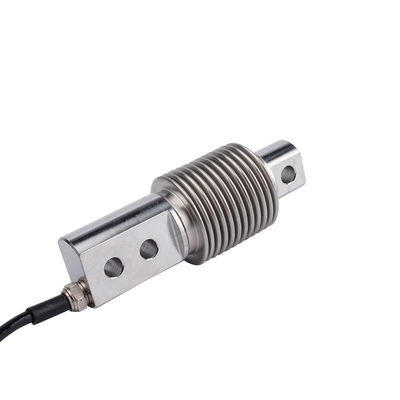

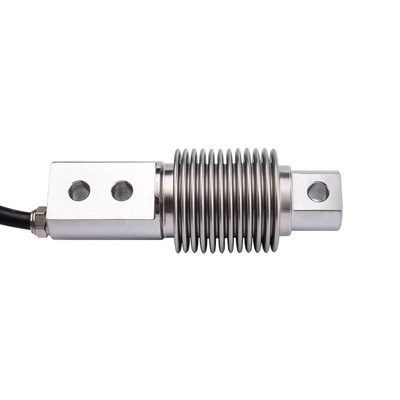

FIBOS FA509 Bending Beam Weight Load Cell 10,20,50,100,200,500kg For High Accuracy Weighing Applications
Features
Bending beam weight load cell 10,20,50,100,200,500kg FA510 is based on the strain gauge technology. The high-accuracy sensor is easy to install.The bending beam load cell offers particularly high protection such as IP68 waterproof. The weight sensor offers limitless possibilities for applications.
Applications
Mounting Dimension
Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 10,20,50,100,200,500kg |
| Accuracy class | C3 |
| Rated output | 2.0±0.05mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.018%F.S. |
| Hysteresis | 0.017%F.S. |
| Repeatability | 0.018%F.S. |
| Creep(30min) | 0.0166%F.S. |
| Temp.effect on output | 0.008%F.S./10℃ |
| Temp.effect on zero | 0.0125%F.S./10℃ |
| Input impedance | 390±5Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~40℃ |
| Operation temp range | -30~70℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| Cable size | Φ5.4×1500mm |
| Material | Stainless Steel |
| IP Class | IP68 |
