Product Details:
|
| Category: | Beam Load Cells | Capacity: | 0.22,0.55,1.1,1.76,2.2,4.4t |
|---|---|---|---|
| Rated Output: | 1.94±0.1%mV/V | Material: | Stainless Steel |

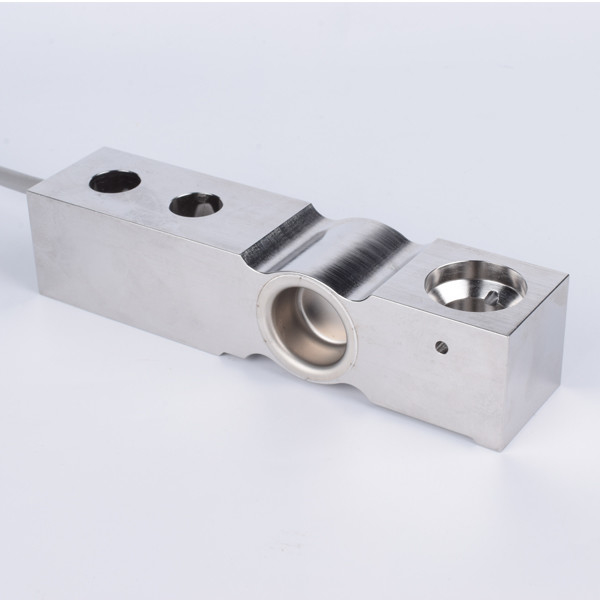

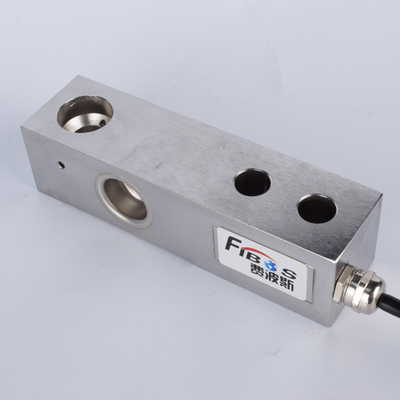

| High Light: | Level Shear Beam Digital Load Cell,Digital Load Cell 500kg |
||
|
Parameters |
Values |
| Capacity |
0.22/0.55/1.1/1.76/2.2/4.4t |
| Rated output | 1.94±1%mV/V |
| Zero Balance | ±2%mV/V |
| Creep(30min) | ≤0.0166%F.S. |
| Non-linearity | ≤0.017%F.S. |
| Hysteresis | ≤0.017%F.S. |
| Repeatability | ≤0.017%F.S. |
|
Input Resistance |
390±3Ω |
| Output Resistance | 350±5Ω |
|
Temp.effect on output
|
0.014%F.S./10 °C
|
|
Temp.effect on zero
|
0.012%F.S./10 °C |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 °C |
| Operating Temp Range | -20~80 °C |
|
Safe Load Limit |
150%F.S.
|
|
Breaking Load |
200%F.S.
|
|
Cable size
|
∅5.4x1.5m
|
|
Material
|
Stainless steel |
The core team of Fibos has 20 years of experience in the design and production of advanced sensors in Germany. We continuously develop and produce: precision micro and small force sensors, dynamic and static torque sensors, six-dimensional force, three-dimensional force, multi-dimensional force sensors, load cells, custom ring force sensors, thread force sensors, thread preload force sensors, sensors for robots, tension series and various non-standard force sensors, etc. The company produces pressure force sensors: accurate measurement, low height, small deformation, high precision, good stability, fast response, easy installation, long life, complete specifications and sizes, not only for push and pull meters, hopper scales, a variety of industrial weighing systems, automotive press assembly, automated assembly, 3C product testing; also used in new energy product assembly, medical testing, textiles, robotics, mold assembly, wind energy, nuclear power and ships, etc. The product dynamic response frequency is high, also can accept custom specifications. In the application of high-frequency loud, fatigue strength after the test, life use up to 100 million times, suitable for all kinds of aircraft, automotive testing occasions.
Q: How can I get the quotation?
Please send your inquiry to us.
Click 'Contact Supplier' icon which is on the right-side or write down your requirement at the bottom of this page.
Q: What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.
Q: Do you have any discount?
Yes, we take bulk order, if you buy large QTY, please send us inquiry, we can discuss the price.
Q: Can I get samples?
Yes, if you have the follower orders, we could offer the samples or free samples for you.
Q: How about the quality of the products?
We have the certification of CE and RoHs , also we are the Alibaba's verified supplier, you don't have to worry about this.
Q: When will you arrange the production?
We will arrange the production immediately after receiving your payment.
Q: Could you provide me the shortest lead time?
We have materials in our stock, if you really need, let's discuss and we will try our best to satisfy you.
