Product Details:
|
| Product Name: | Single Point Weight Sensor | Capacity: | 0.22,0.55,1.1,1.76,2.2,4.4t |
|---|---|---|---|
| Rated Output: | 1.94±0.1%mV/V | Non-linearity: | ≤0.017%F.S. |
| Repeatability: | ≤0.017%F.S. | Material: | Stainless Steel |
| Maximum Excitation: | 15V | Safe Overload: | 150%F.S. |
| High Light: | 4.4t SS Weighing Force Sensor,Threaded Holes Shear Beam Load Cell |
||

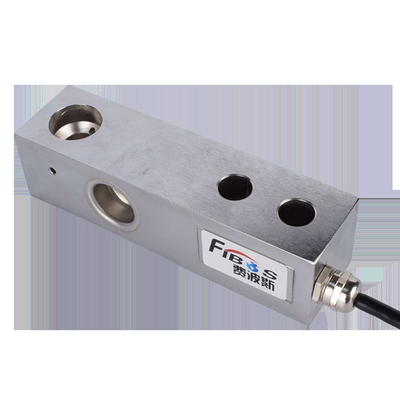

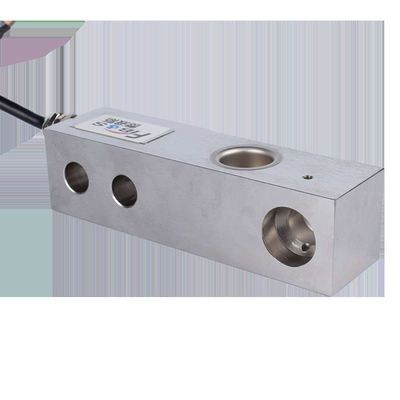

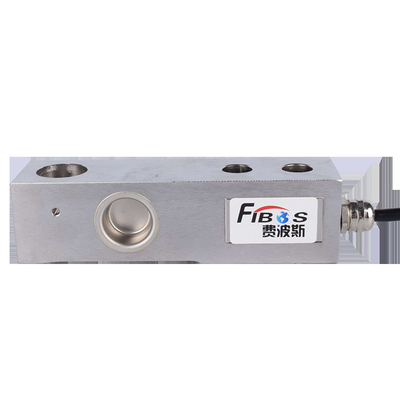

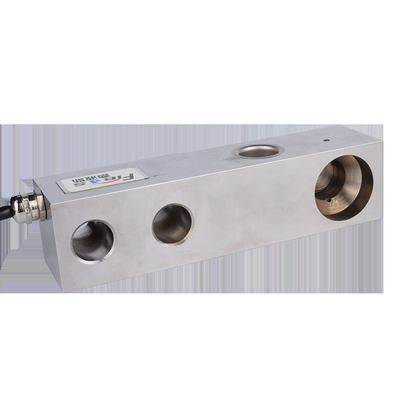

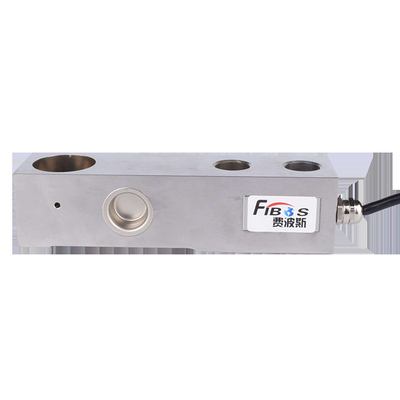

0.22t 0.55t 1.1t 1.76t 2.2t 4.4t ≤0.017%F.S. Stainless Steel Shear Beam Load Cell FA509B is a model of our brand FIBOS FA5-Series, Shear Beam Load Cell FA509B can be used to measure weight 0.22t,0.55t,1.1t,1.76t,2.2t and 4.4t, its Rated output range is 1.94±0.1%mV/V, its Creep(30min) ≤0.0166%F.S., its Non-linearity,Hysteresis and Repeatability all ≤0.017%F.S..
Beam-type weighing sensors operate as simple shear beams, bending slightly when subjected to force or weight.
They are usually fixed at one end and free at the other, behaving much like a diving board,
although there are also double-ended designs, mounted at both ends and mounted in the center, more similar to hammocks.
In addition, it is often seen that beam-type weighing sensors fall into two sub-categories, depending on how they measure force or weight.
The bending beam element measures the amount of shear deformation, while the shear beam weighing sensor measures the amount of bending distortion.
2. Specifications
| Product name | Shear Beam Load Cell |
| Capacity | 0.22,0.55,1.1,1.76,2.2,4.4t |
| Rated output | 1.94±0.1%mV/V |
| Zero Balance | ±2%mV/V |
| Creep(30min) | ≤0.0166%F.S. |
| Non-linearity | ≤0.017%F.S. |
| Hysteresis | ≤0.017%F.S. |
| Repeatability | ≤0.017%F.S. |
| Input impedance | 390±3Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.014%F.S./10 ℃ |
| Temp.effect on zero | 0.012%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -30~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀5.4x1.5m |
| Material | Stainless steel |
3. Dimension
4.Advantages.
①The output signal is not affected by changes in the orientation of the force measurement point.
②Good linearity and high accuracy.
③Low height, small volume, light weight, easy to install and repair;
④Simple structure, easy to seal, good long-term stability, durable;
⑤Strong lateral resistance
5. Application
Widely used in vehicle scales, electronic rail scales and a variety of high-precision electronic scales, platform scales, small weighing scales, material filling and conveyor scales, container scales and other applications.
