Product Details:
|
| Product Name: | Miniature Force Sensor | Capacity: | 50,100,200,500N; 1,2,5,10,20kN |
|---|---|---|---|
| Rated Output: | 1.5±20%mV/V | Non-linearity: | ≤0.5%F.S. |
| Repeatability: | ≤0.1%F.S. | Material: | Stainless Steel |
| Cable Size: | 2/3*3000mm | Weight: | 0.03kg |
| High Light: | Compression Micro Load Cell,500N Micro Load Cell,200N Miniature Force Sensor |
||

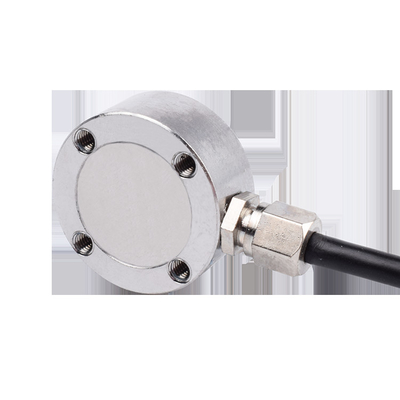

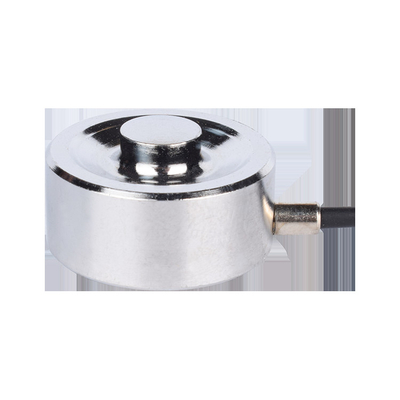

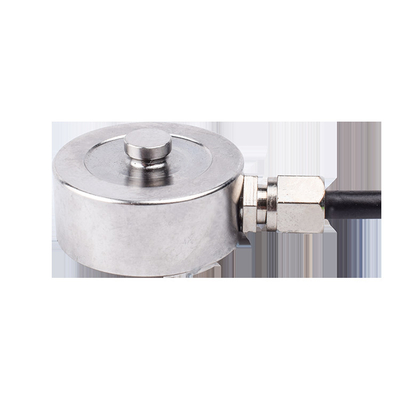

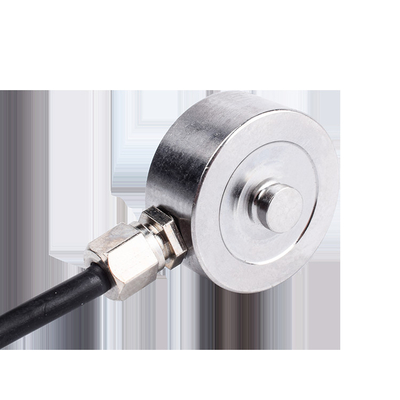

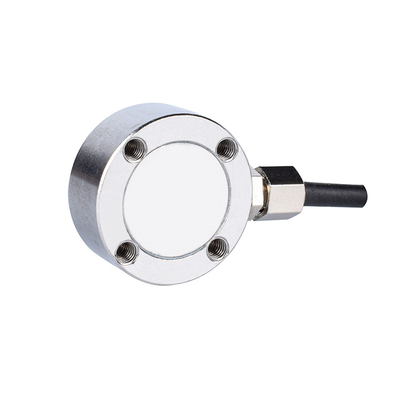

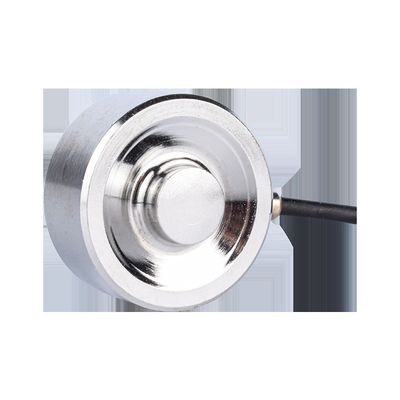

Factory Wholesale Load Cell Mini Miniature Compression Micro Load Cell For Car Press And Mount
1. Descriptions
2. Specifications
| Product name | Miniature Force Sensor |
| Capacity | 50,100,200,500N; 1,2,5,10,20kN |
| Rated output | 1.5±20%mV/V |
| Zero Balance | ±2%mV/V |
| Creep(30min) | ≤0.1%F.S. |
| Non-linearity | ≤0.5%F.S. |
| Hysteresis | ≤0.2%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 800~1100Ω |
| Output impedance | 800~1100Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀2/3X3m |
| Material | Stainless steel |
3. Dimension
4. Application
Small pressure sensors are widely used in aerospace, electric power, sewage treatment, water supply, petrochemical and pharmaceutical industries, thermoelectric units, air conditioning units, refrigeration units, laboratory pressure calibration, industrial process pressure detection and control, internal combustion engines, engines, hydraulic and Pneumatic system, constant pressure water supply system and other industries such as liquid, gas, steam and other major industries.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
