Product Details:
|
| Product Name: | Column Type Load Cell | Capacity: | 50,100,200,500,1000,2000,3000kN |
|---|---|---|---|
| Non-linearity: | 0.02%,0.05%,0.1%,0.3%F.S. | Repeatability: | 0.02%,0.05%,0.1%,0.3%F.S. |
| Material: | Alloy Steel/Stainless Steel | IP Class: | IP67 |
| High Light: | fibos 0.1% steel load cell,fibos 0.1% steel load cells,0.1% steel load cells fibos |
||

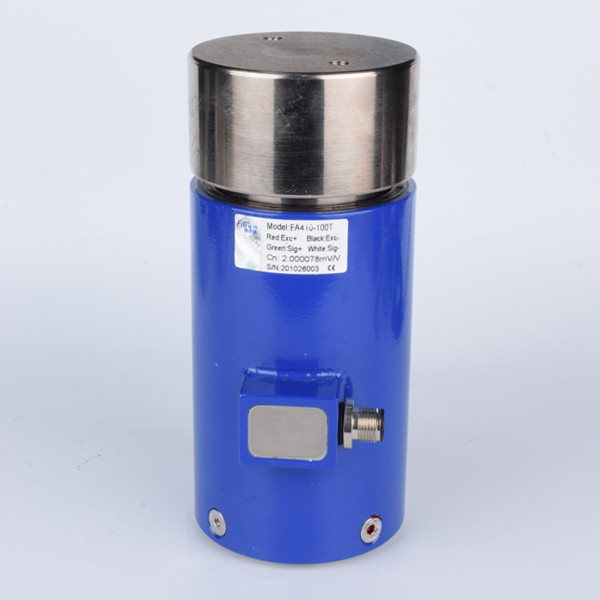

50kN~3000kN IP67 Alloy Steel Or Stainless Steel Column Type Load Cell Weighing Sensor
1. Descriptions
50kN~3000kN IP67 Alloy Steel Or Stainless Steel Column Type Load Cell Weighing Sensor FA410 is a model of Column Type Load Cell, it is designed to measure load ranges from 50kN up to 3000kN. The material Alloy Steel or Stainless Steel can be customized, its cable size is 5.4x6000mm, it supports IP67.
2. Specifications
| Product name | Column Type Load Cell |
| Capacity | 50,100,200,500,1000,2000,3000kN |
| Rated output | 2.0±10%mV/V |
| Zero Balance | ±1%mV/V |
| Non-linearity | 0.02%,0.05%,0.1%,0.3%F.S. |
| Repeatability | 0.02%,0.05%,0.1%,0.3%F.S. |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -30~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀5.4x6000mm |
| Material | Alloy Steel or Stainless Steel |
| IP Class | IP67 |
3. Dimension
4. Application
50kN~3000kN IP67 Alloy Steel Or Stainless Steel Column Type Load Cell Weighing Sensor is widely applied in silos.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
