Product Details:
|
| Capacity: | 0.1,0.2,0.3,0.5,1,2,3,5N.m | Rated Output: | 1.0~1.5mV/V |
|---|---|---|---|
| Non-linearity: | ≤0.2%F.S. | Repeatability: | ≤0.1%F.S. |
| IP Class: | IP66 | Product Name: | Dynamic Torque Sensor |
| High Light: | 5nm force and torque sensor,ip66 force and torque sensor,1.5 mv v dynamic force sensor |
||

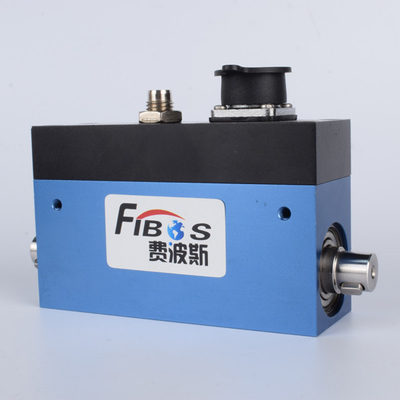

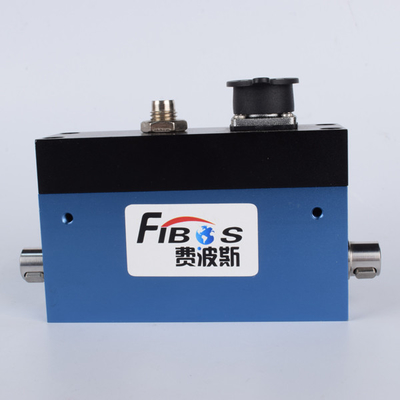

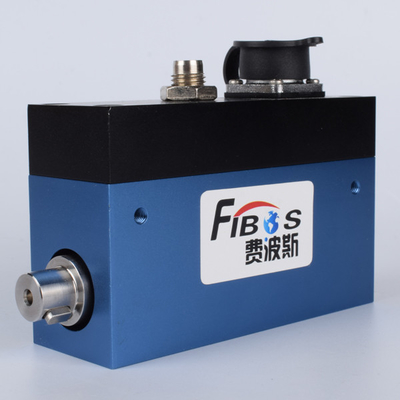

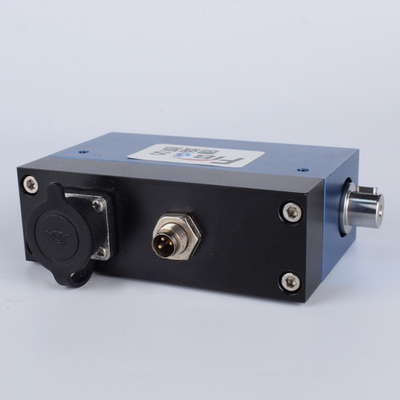

0.1-5N·M IP66 Dynamic Torque Sensor
1. Descriptions
0.1-5N·M IP66 Dynamic Torque Sensor FA605 is a model of our brand FIBOS FA6-Series, FA605 belongs to Torque Force Sensor, it can be used to measure torque force 0.1t, 0.2t, 1t, 2t, 3t, 5t, 10t, 15t, 20t and 30t capacity, its Creep(30min),Non-linearity and Hysteresis all the same ≤0.05%F.S., its Repeatability ≤0.03%F.S., its Cable size is ⌀6x5000mm.
2. Specifications
| Product name | Dynamic Torque Sensor |
| Capacity | 0.1,0.2,1,2,3,5,10,15,20,30t |
| Rated output | 2.0±1%mV/V |
| Zero Balance | ±1%F.S. |
| Creep(30min) | ≤0.05%F.S. |
| Non-linearity | ≤0.05%F.S. |
| Hysteresis | ≤0.05%F.S. |
| Repeatability | ≤0.03%F.S. |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Temp.effect on output | 0.02%F.S./10 ℃ |
| Temp.effect on zero | 0.02%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -10~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀6x5000mm |
3. Dimension
4. Application
0.1-5N·M IP66 Dynamic Torque Sensor FA605 could be used for internal combustion engines.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
