Product Details:
|
| Product Name: | Miniature Force Sensor | Capacity: | 10,20,50,100,200,500,1000kg |
|---|---|---|---|
| Rated Output: | 1.5±10%mV/V | Non-linearity: | ≤0.2%F.S. |
| Repeatability: | ≤0.1%F.S. | Material: | Stainless Steel |
| High Light: | 1000kg Column Type Load Cell,10kg Column Type Load Cell,0.1% piezoelectric sensor for force measurement |
||

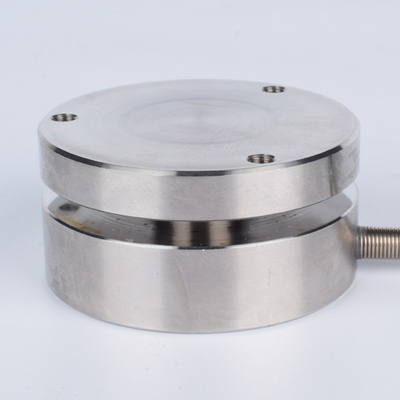

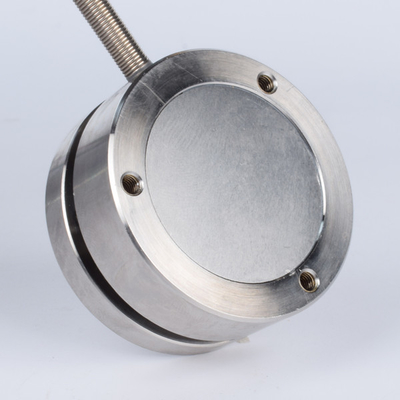

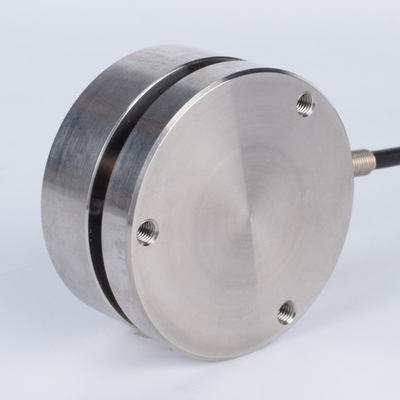

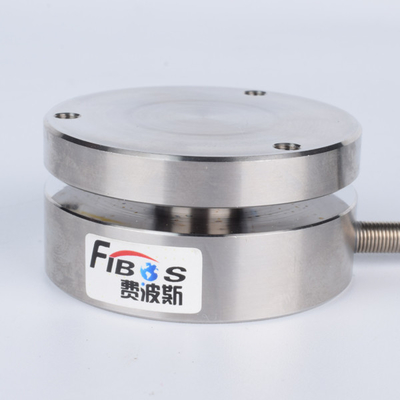

10-1000kg Stainless Steel Miniature Force Sensor
1. Descriptions
10-1000kg Stainless Steel Miniature Force Sensor FA113A belongs to FA113 which is in Miniature Force Sensor category of our brand FIBOS FA1-Series,Miniature Force Sensor FA113A can be used to measure load ranges from 10kg,20kg,50kg,100kg,200kg,500kg up to 1000kg capacity, its Creep(30min) ≤0.05%F.S., and its Repeatability ≤0.1%F.S..
2. Specifications
| Product name | Miniature Force Sensor |
| Capacity | 10,20,50,100,200,500,1000kg |
| Rated output | 1.5±10%mV/V |
| Zero Balance | ±2%mV/V |
| Creep(30min) | ≤0.05%F.S. |
| Non-linearity | ≤0.2%F.S. |
| Hysteresis | ≤0.2%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 780±20Ω |
| Output impedance | 700±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀3x3m |
| Material | Stainless steel |
3. Dimension
4. Application
10-1000kg Stainless Steel Column Type Load Cell FA113A could be used for vehicle scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
