Product Details:
|
| Product Name: | Column Type Load Cell | Capacity: | 50,100,200,500,1000N |
|---|---|---|---|
| Rated Output: | 2.0±10%mV/V | Non-linearity: | ≤0.05%F.S. |
| Repeatability: | ≤0.05%F.S. | Material: | Stainless Steel |
| High Light: | 50n column load cell,1000n column load cell,stainless steel tension force transducer |
||

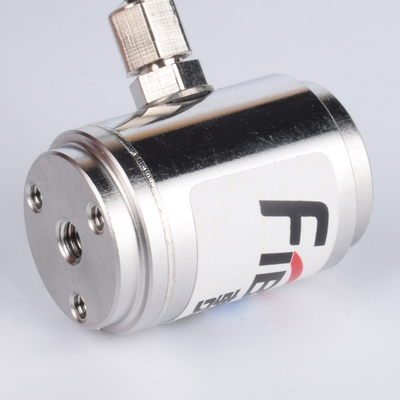

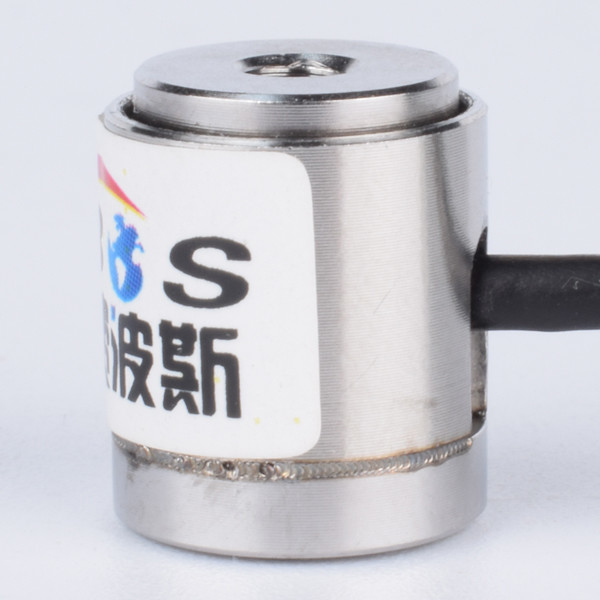

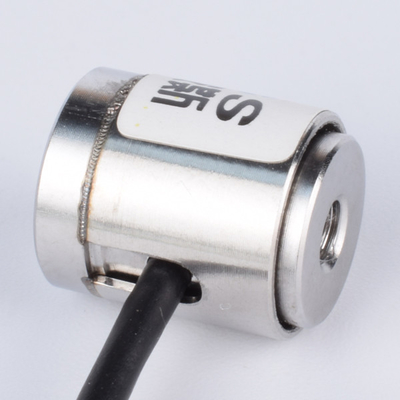

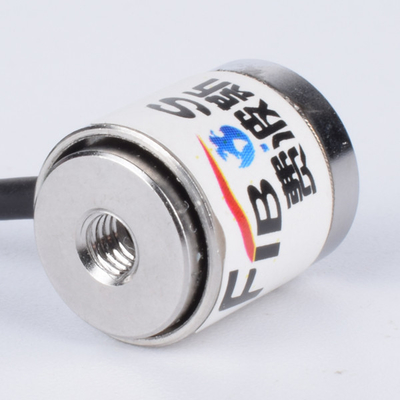

50-1000N Stainless Steel Column Type Load Cell
1. Descriptions
50-1000N Stainless Steel Column Type Load Cell FA402 is a model of Column Type Load Cell, it belongs to our brand FA4-Series, FA402 can be used to measure load 50N, 100N, 200N, 500N and 1000N capacity, its Creep(30min), Non-linearity, Hysteresis and Repeatability all ≤0.05%F.S., its Cable size is ⌀3x3000mm, and its weight is 0.1kg.
2. Specifications
| Product name | Column Type Load Cell |
| Capacity | 50,100,200,500,1000N |
| Rated output | 2.0±10%mV/V |
| Zero Balance | ±0.05mV/V |
| Creep(30min) | ≤0.05%F.S. |
| Non-linearity | ≤0.05%F.S. |
| Hysteresis | ≤0.05%F.S. |
| Repeatability | ≤0.05%F.S. |
| Input impedance | 350±5Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀3x3000mm |
| Weight | 0.1kg |
| Material | Stainless steel |
3. Dimension
4. Application
50-1000N Stainless Steel Column Type Load Cell FA402 could be applied in silos measuring and electronic platform scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
