Product Details:
|
| Product Name: | Dynamic Torque Sensor | Capacity: | 0.1,0.2,0.3,0.5,1,2,3,5,10,20,30,50,100,200,300,500N.m |
|---|---|---|---|
| Rated Output: | 1.0~1.5mV/V | Non-linearity: | ≤0.2%F.S. |
| Repeatability: | ≤0.1%F.S. | IP Class: | IP66 |
| High Light: | IP66 Force Torque Sensor,0.1NM Force Torque Sensor,500NM rotating torque meter |
||

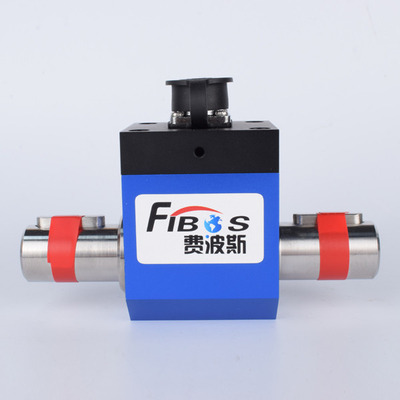

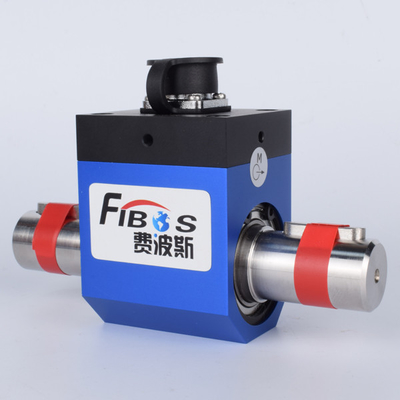

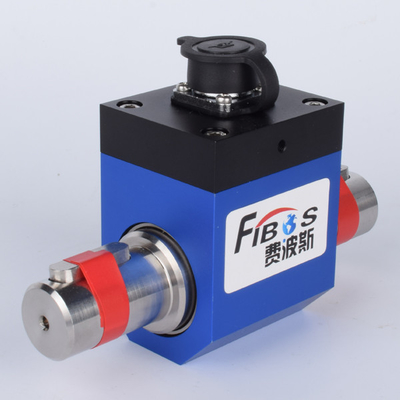

0.1-500N.m IP66 dynamic torque sensor
1. Descriptions
0.1-500N.m IP66 dynamic torque sensor FA604 is a model of our brand FIBOS FA6-Series, it belongs to torque sensor, FA604 can be used to measure torque force 0.1N.m, 0.2N.m, 0.3N.m, 0.5N.m, 1N.m, 2N.m, 3N.m, 5N.m, 10N.m, 20N.m, 30N.m, 50N.m, 100N.m, 200N.m, 300N.m and 500N.m capacity, its Creep(30min) and Repeatability both same ≤0.1%F.S., its Non-linearity and Hysteresis both ≤0.2%F.S..
2. Specifications
| Product name | Dynamic Torque Sensor |
| Capacity | 0.1,0.2,0.3,0.5,1,2,3,5,10,20,30,50,100,200,300,500N.m |
| Rated output | 1.0~1.5mV/V |
| Zero Balance | ±0.01mV/V |
| Creep(30min) | ≤0.1%F.S. |
| Non-linearity | ≤0.2%F.S. |
| Hysteresis | ≤0.2%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 350/700±10Ω |
| Output impedance | 350/700±10Ω |
| Temp.effect on output | 0.02%F.S./10 ℃ |
| Temp.effect on zero | 0.02%F.S./10 ℃ |
| Insulation resistance | ≥2000MΩ/100V(DC) |
| Recommended excitation | 12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~60 ℃ |
| Safe overload | 120%F.S. |
| Ultimate overload | 150%F.S. |
| Cable size | 3m |
| IP Class | IP66 |
3. Dimension
4. Application
0.1-500N.m IP66 dynamic torque sensor FA604 could be for engines.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
