Product Details:
|
| Product Name: | Dynamic Torque Sensor | Capacity: | 5~5000N.m |
|---|---|---|---|
| Output Signal: | 5~15Khz/4-20mA/0-5∨10V | Speed Range: | 0~8000rpm |
| Non-linearity: | ≤0.3%F.S. | IP Class: | IP66 |
5-5000N.M 0~8000rpm 0-90%RH IP66 Dynamic Torque Sensor
1. Descriptions

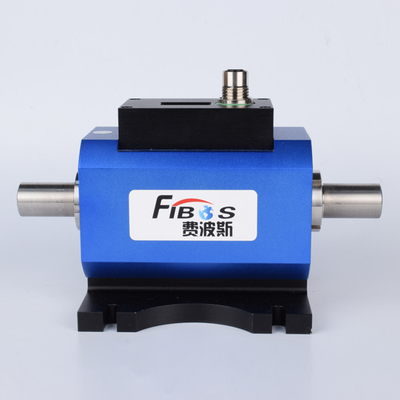

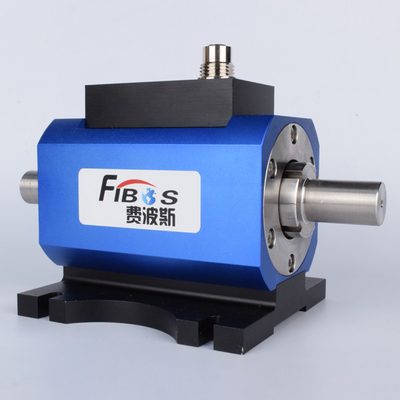

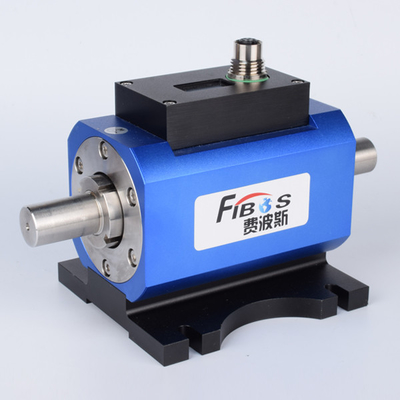

5-5000N.M 0~8000rpm 0-90%RH IP66 Dynamic Torque Sensor FA606 is a model of our brand FIBOS FA6-Series, Dynamic Torque Sensor FA606 can be used to measure force ranges from 5N.m to 5000N.m capacity, its Speed range is 0~8000rpm, its Non-linearity ≤0.3%F.S., its Hysteresis ≤0.5%F.S., its Repeatability ≤0.2%F.S..
2. Specifications
| Product name | Dynamic Torque Sensor |
| Capacity | 5~5000N.m |
| Output signal | 5~15Khz/4-20mA/0-5∨10V |
| Speed range | 0~8000rpm |
| Zero Balance | ±2%mV/V |
| Non-linearity | ≤0.3%F.S. |
| Hysteresis | ≤0.5%F.S. |
| Repeatability | ≤0.2%F.S. |
| Insulation resistance | ≥2000MΩ/100V(DC) |
| Recommended excitation | ±15VDC(Frequency signal) 24VDC(Voltage,current signal) |
| Operating temp range | -20~60 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | 3m |
| IP Class | IP66 |
| Relative humidity | 0-90%RH |
3. Dimension
4. Application
5-5000N.M 0~8000rpm 0-90%RH IP66 Dynamic Torque Sensor FA606 can be used for electric motors.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
