Product Details:
|
| Product Name: | Tension Force Sensor | Capacity: | 10,50,100,500,1000,3000,5000,10000N Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.015%F.S. Or Customized | Non-linearity: | ≤0.016%F.S. Or Customized |
| Hysteresis: | ≤0.016%F.S. Or Customized | Repeatability: | ≤0.015%F.S. Or Customized |
| High Light: | alloy steel Tension Force Sensor,10n Tension Force Sensor,10kn rope tension load cell |
||
10,50,100,500,1000,3000,5000,10000N Or Customized Tension Force Sensor
1. Descriptions

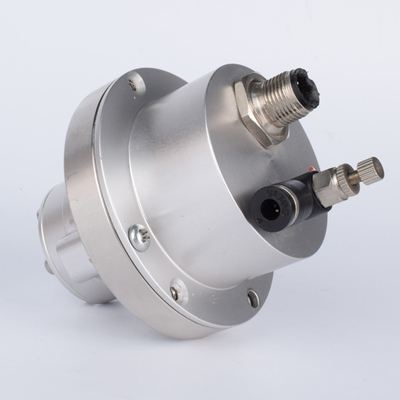

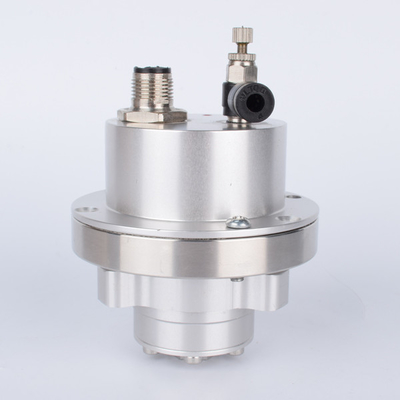

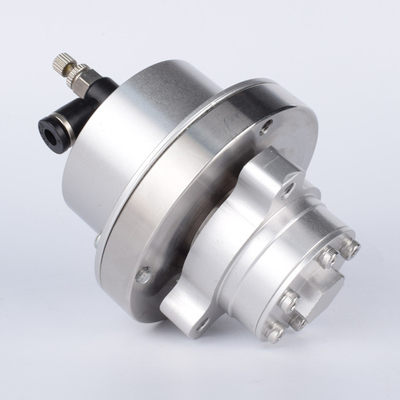

10,50,100,500,1000,3000,5000,10000N Or Customized Tension Force Sensor FA921 is a model of our brand FIBOS FA9-Series, Tension Force Sensor FA921 can be used to measure tension force 10N,50N,100N,500N,1000N,3000N,5000N and 10000N or customized capacity, its Material is Alloy steel or can be customized.
2. Specifications
| Product name | Tension Force Sensor |
| Capacity | 10,50,100,500,1000,3000,5000,10000N or customized |
| Rated output | 0.6±20%mV/V |
| Zero Balance | ±2%mV/V |
| Creep(30min) | ≤0.015%F.S. or customized |
| Non-linearity | ≤0.016%F.S. or customized |
| Hysteresis | ≤0.016%F.S. or customized |
| Repeatability | ≤0.015%F.S. or customized |
| Input impedance | 350±10Ω |
| Output impedance | 300±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -20~60 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀5x3000mm or customized |
| Material | Alloy steel or customized |
| Weight | 0.21kg or customized |
3. Dimension
Need to be customized
4. Application
10,50,100,500,1000,3000,5000,10000N Or Customized Tension Force Sensor FA921 could be used in cable laying machines.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
