Product Details:
|
| Product Name: | Tension Force Sensor | Capacity: | 5,10,20,30,50,100,200,300,500,1000,2000N Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.021%F.S. Or Customized | Non-linearity: | ≤0.022%F.S. Or Customized |
| Hysteresis: | ≤0.021%F.S. Or Customized | Repeatability: | ≤0.020%F.S. Or Customized |
| High Light: | 0.02% 5v load cell,2000n 5v load cell,350 ohm 500n load cell |
||
5,10,20,30,50,100,200,300,500,1000,2000N Or Customized Tension Force Sensor
1. Descriptions

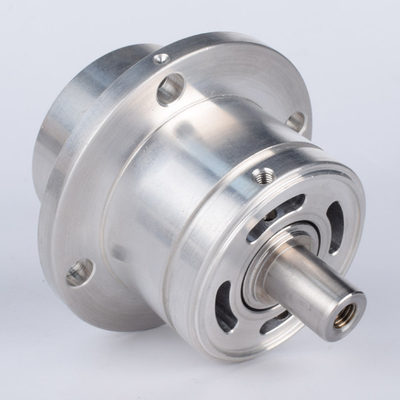

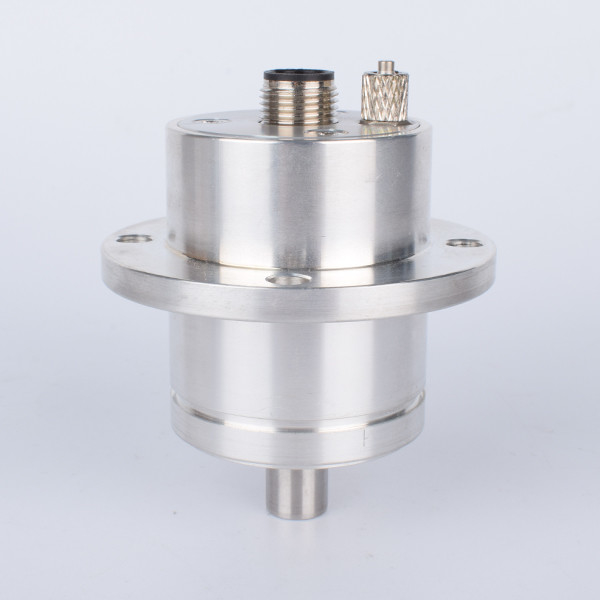

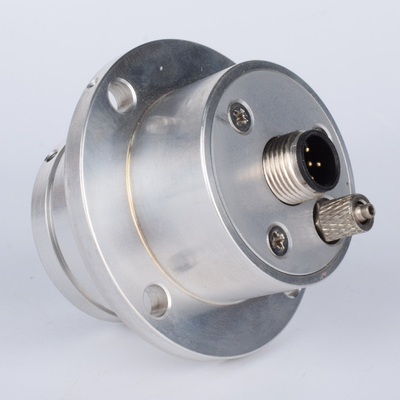

5,10,20,30,50,100,200,300,500,1000,2000N Or Customized Tension Force Sensor FA924 is a model of our brand FIBOS FA9-Series, Tension Force Sensor FA924 can be used to measure tension force ranges from 5N,10N,20N,30N,50N,100N,200N,300N,500N,1000N and 2000N or customized capacity, its Cable size is ⌀5x4500mm.
2. Specifications
| Product name | Tension Force Sensor |
| Capacity | 5,10,20,30,50,100,200,300,500,1000,2000N or customized |
| Rated output | 0.6±20%mV/V |
| Zero Balance | ±2%mV/V |
| Creep(30min) | ≤0.021%F.S. or customized |
| Non-linearity | ≤0.022%F.S. or customized |
| Hysteresis | ≤0.021%F.S. or customized |
| Repeatability | ≤0.020%F.S. or customized |
| Input impedance | 350±10Ω |
| Output impedance | 300±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -20~60 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀5x4500mm |
| Material | Alloy steel or customized |
| Weight | 0.19kg or customized |
3. Dimension
Need to be customized
4. Application
5,10,20,30,50,100,200,300,500,1000,2000N Or Customized Tension Force Sensor FA924 can be used in the printing industry.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
