Product Details:
|
| Product Name: | Tension Force Sensor | Capacity: | 10,20,50,100,200,500,1000,2000,5000N Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.026%F.S. Or Customized | Non-linearity: | ≤0.025%F.S. Or Customized |
| Hysteresis: | ≤0.026%F.S. Or Customized | Repeatability: | ≤0.026%F.S. Or Customized |
| High Light: | 0.025 tension force sensors,FIBOS 0.025 tension force sensor,RoHS 0.025 tension force sensors |
||

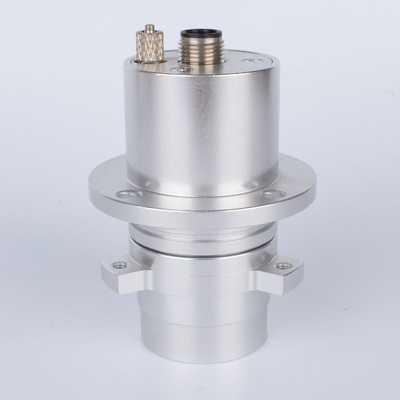

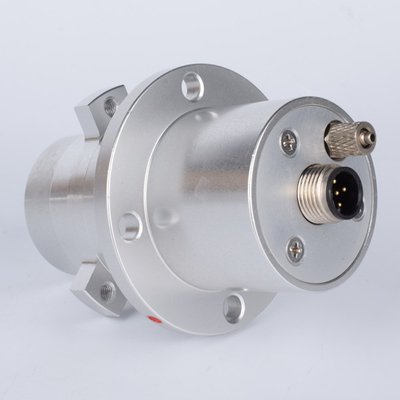

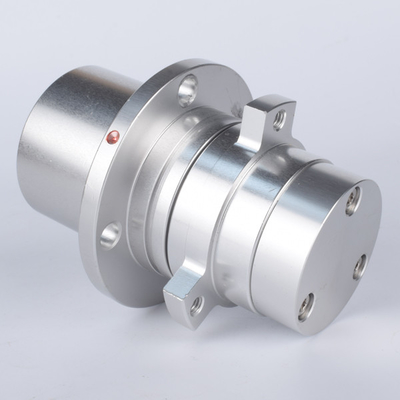

10,20,50,100,200,500,1000,2000,5000N Or Customized Tension Force Sensor
1. Descriptions
10,20,50,100,200,500,1000,2000,5000N Or Customized Tension Force Sensor FA925 is a model of our brand FIBOS FA9-Series, Tension Force Sensor FA925 can be used to measure tension force 10N,20N,50N,100N,200N,500N,1000N,2000N and 5000N or customized capacity, its Zero Balance range is ±2%mV/V, its Creep(30min),Hysteresis and Repeatability all ≤0.026%F.S. or can be customized, its Non-linearity ≤0.025%F.S. or can also be customized.
2. Specifications
| Product name | Tension Force Sensor |
| Capacity | 10,20,50,100,200,500,1000,2000,5000N or customized |
| Rated output | 0.6±20%mV/V |
| Zero Balance | ±2%mV/V |
| Creep(30min) | ≤0.026%F.S. or customized |
| Non-linearity | ≤0.025%F.S. or customized |
| Hysteresis | ≤0.026%F.S. or customized |
| Repeatability | ≤0.026%F.S. or customized |
| Input impedance | 350±10Ω |
| Output impedance | 300±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -20~60 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀5x5000mm |
| Material | Alloy steel or customized |
| Weight | 0.19kg or customized |
3. Dimension
Need to be customized
4. Application
10,20,50,100,200,500,1000,2000,5000N Or Customized Tension Force Sensor FA925 could be used in the plastics industry.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
