Product Details:
|
| Product Name: | Dynamic Torque Sensor | Capacity: | 1,2,3,5,10,20,30,50,100,200N.m Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.1%F.S. Or Customized | Non-linearity: | ≤0.2%F.S. Or Customized |
| Hysteresis: | ≤0.2%F.S. Or Customized | Repeatability: | ≤0.1%F.S. Or Customized |
| High Light: | 0.2% Force Torque Sensor,200nm Force Torque Sensor,12v rotary torque transducer |
||

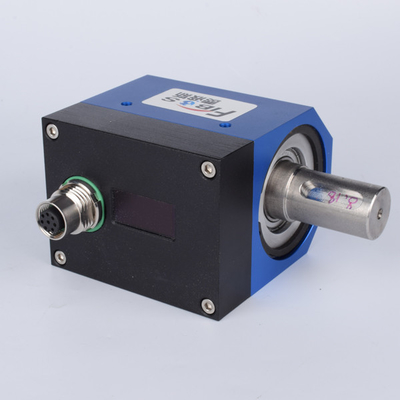

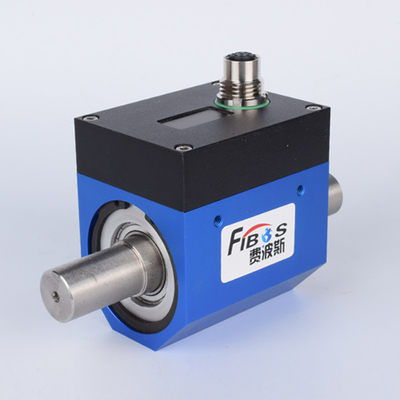

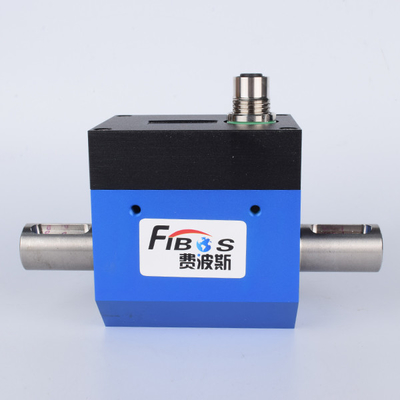

1,2,3,5,10,20,30,50,100,200Nm Or Customized Dynamic Torque Sensor
1. Descriptions
1,2,3,5,10,20,30,50,100,200Nm Or Customized Dynamic Torque Sensor FA607B is a model of our brand FIBOS FA6-Series, FA607B belongs to FA607 which is from Torque Force Sensor, it can be used to measure Torque Force 1N.m, 2N.m, 3N.m, 5N.m, 10N.m, 20N.m, 30N.m, 50N.m, 100N.m, 200N.m or customized capacity, its Creep(30min) and Repeatability both same ≤0.1%F.S. or can be customized, its Non-linearity and Hysteresis both same ≤0.2%F.S. or also can be customized.
2. Specifications
| Product name | Dynamic Torque Sensor |
| Capacity | 1,2,3,5,10,20,30,50,100,200N.m or customized |
| Rated output | 1.0~1.5mV/V |
| Zero Balance | ±0.01mV/V |
| Creep(30min) | ≤0.1%F.S. or customized |
| Non-linearity | ≤0.2%F.S. or customized |
| Hysteresis | ≤0.2%F.S. or customized |
| Repeatability | ≤0.1%F.S. or customized |
| Input impedance | 350/700±10Ω |
| Output impedance | 350/700±10Ω |
| Temp.effect on output | 0.02%F.S./10 ℃ |
| Temp.effect on zero | 0.02%F.S./10 ℃ |
| Insulation resistance | ≥2000MΩ/100V(DC) |
| Recommended excitation | 12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~60 ℃ |
| Safe overload | 120%F.S. |
| Ultimate overload | 150%F.S. |
| Cable size | 3m or customized |
| IP Class | IP66 or customized |
3. Dimension
Need to be customized
4. Application
1,2,3,5,10,20,30,50,100,200Nm Or Customized Dynamic Torque Sensor FA607B could be used for fans.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
