Product Details:
|
| Product Name: | Miniature Force Sensor | Capacity: | 1,2,5,10,20,50,100kN |
|---|---|---|---|
| Rated Output: | 1.5±100%mV/V | Non-linearity: | ≤0.2%F.S. |
| Repeatability: | ≤0.1%F.S. | Material: | Stainless Steel |
| Weight: | 0.4kg | ||
| High Light: | 100kN Mini Force Sensor,SS Small Button Force Transducer |
||

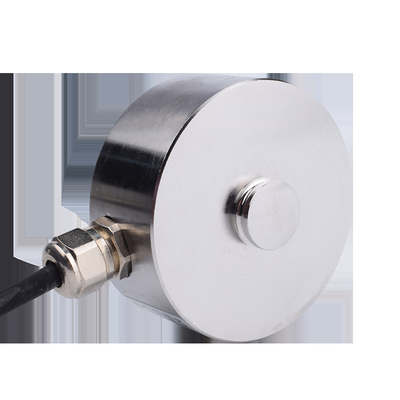

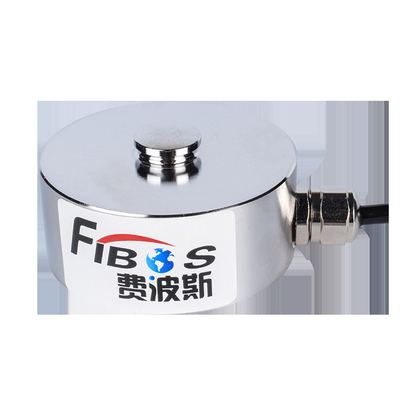

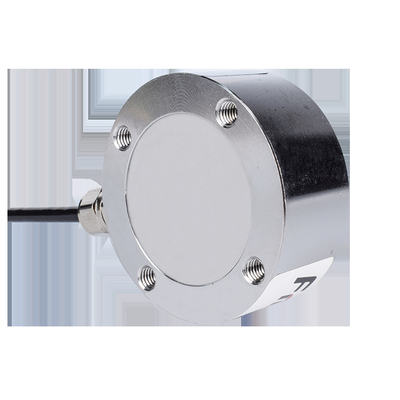

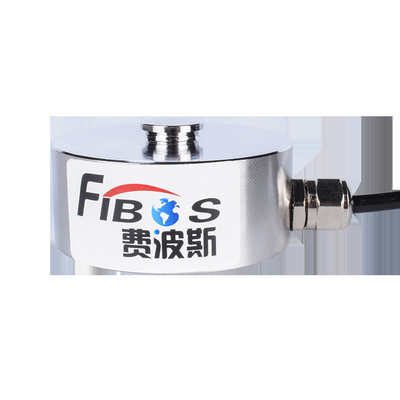

1~100kN Stainless Steel Miniature Force Sensor
1. Descriptions
1~100kN Stainless Steel Miniature Force Sensor FA114 is a model of our brand FIBOS FA1-Series, Miniature Force Sensor FA114 can be used to measure force 1,2,5,10,20,50,100kN capacity, its Rated output range is 1.5±100%mV/V and its Zero Balance range is ±1%mV/V, its Creep(30min) ≤0.1%F.S..
2. Specifications
| Product name | Miniature Force Sensor |
| Capacity | 1,2,5,10,20,,50,100kN |
| Rated output | 1.5±10%mV/V |
| Zero Balance | ±1%F.S. |
| Creep(30min) | ≤0.1%F.S. |
| Non-linearity | ≤0.2%F.S. |
| Hysteresis | ≤0.1%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀4X3000m |
| Material | Stainless steel |
3. Dimension
4. Application
1,2,5,10,20,50,100kN Stainless Steel Miniature Force Sensor FA114 could be used for a vest array of applicaitons.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
