Product Details:
|
| Product Name: | Miniture Force Sensor | Capacity: | 10,20,50,100,200,500kg |
|---|---|---|---|
| Rated Output: | 1.5±10%mV/V | Non-linearity: | ≤0.5%F.S. |
| Repeatability: | ≤0.2%F.S. | Material: | Stainless Steel |
| High Light: | Miniature Force Sensor 10kg,Stainless Steel 500kg Load Cell |
||
1-50kN Stainless Steel Tension Compression Force Sensor
1. Descriptions

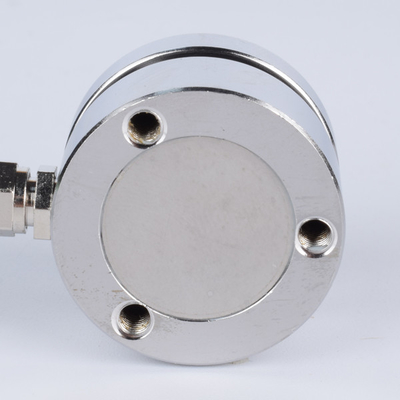

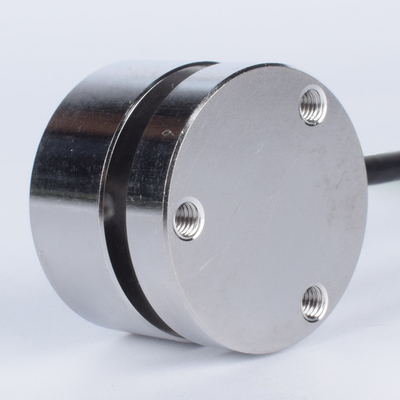

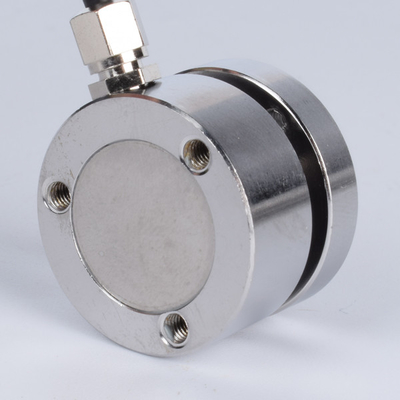

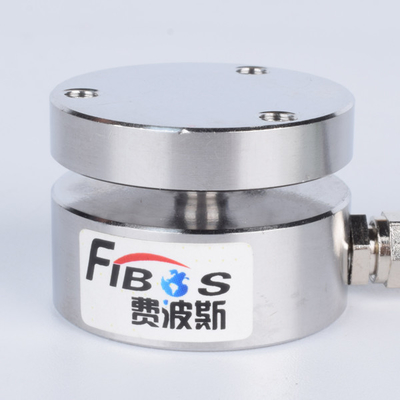

10-500kg Stainless Steel Miniture Force Sensor FA127 is a model of our brand FIBOS FA1-Series, Miniture Force Sensor FA127 can be used for small space force measurement and ctesting machine 10kg,20kg,50kg,100kg,200kg and 500kg capacity, its Zero Balance range is ±0.03mV/V, its Cable size is ⌀3x3000mm.
2. Specifications
| Product name | Miniture Force Sensor |
| Capacity | 10,20,50,100,200,500kg |
| Rated output | 1.5±10%mV/V |
| Zero Balance | ±0.03mV/V |
| Creep(30min) | ≤0.2%F.S. |
| Non-linearity | ≤0.5%F.S. |
| Hysteresis | ≤0.3%F.S. |
| Repeatability | ≤0.2%F.S. |
| Input impedance | 700±20Ω |
| Output impedance | 700±10Ω |
| Temp.effect on output | 0.1%F.S./10 ℃ |
| Temp.effect on zero | 0.1%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀3x3000mm |
| Weight | 0.2kg |
| Material | Stainless steel |
3. Dimension
4. Application
10-500kg Stainless Steel Miniture Force Sensor FA127 can be used for small space force measurement.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
