Product Details:
|
| Product Name: | Tension Force Sensor | Capacity: | 0.22t, 0.55t, 1.1t, 1.76t, 2.2t, 4.4t Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.0166%F.S. Or Customized | Non-linearity: | ≤0.17%F.S. Or Customized |
| Hysteresis: | ≤0.17%F.S. Or Customized | Repeatability: | ≤0.17%F.S. Or Customized |
| Highlight: | 4.4t Compression Load Cell Sensor,350Ohm Stainless Steel Stress Sensors |
||
0.22t, 0.55t, 1.1t, 1.76t, 2.2t, 4.4t Or Customized Tension Compression Force Sensor
1. Descriptions
0.22t, 0.55t, 1.1t, 1.76t, 2.2t, 4.4t Or Customized Tension Compression Force Sensor FA509 is a model of Tension Compression Force Sensor, it belongs to our brand FIBOS FA5-Series, it can be used to measure load 0.22t, 0.55t, 1.1t, 1.76t, 2.2t and 4.4t or customized capacity, its Creep(30min) ≤0.0166%F.S. , Non-linearity, Hysteresis and Repeatability all ≤0.17%F.S. or can be customized.
2. Specifications
| Product name | Tension Force Sensor |
| Capacity | 0.22t, 0.55t, 1.1t, 1.76t, 2.2t, 4.4t or customized |
| Sensitivity | 1.94±0.1%mV/V |
| Zero Balance | ±2mV/V |
| Creep(30min) | ≤0.0166%F.S. or customized |
| Non-linearity | ≤0.17%F.S. or customized |
| Hysteresis | ≤0.17%F.S. or customized |
| Repeatability | ≤0.17%F.S. or customized |
| Input impedance | 390±3Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.014%F.S./10 ℃ |
| Temp.effect on zero | 0.0125%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀5.4x1.5m or customized |
| Weight | 0.5kg or customized |
| Material | Stainless steel or customized |

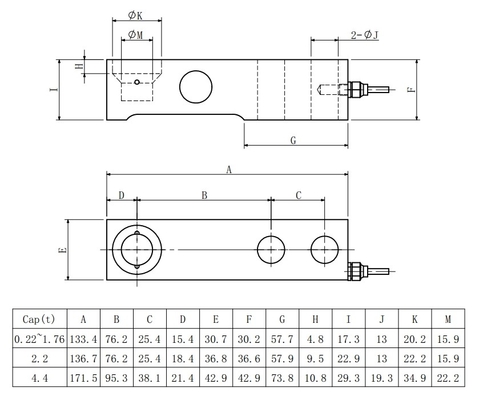

3. Dimension
Need to be customized
4. Application
0.22t, 0.55t, 1.1t, 1.76t, 2.2t, 4.4t Or Customized Tension Compression Force Sensor FA509 could also be used in tension force measuring and compression load measuring in industrial industry.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
