Product Details:
|
| Product Name: | Ring Force Sensor | Capacity: | 5,10,20,30,50kN |
|---|---|---|---|
| Rated Output: | 1.5±20%mV/V | Non-linearity: | ≤0.2%F.S. |
| Repeatability: | ≤0.1%F.S. | Material: | Stainless Steel |
| High Light: | Miniature Force Sensor 5kn,SS Miniature Ring Force Sensor |
||
Stainless Steel Miniature Force Sensor 5-50kn Ring Force Sensor
1. Descriptions

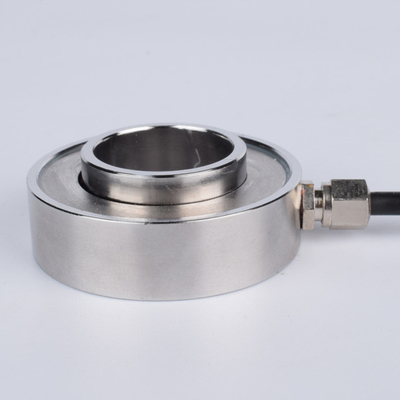

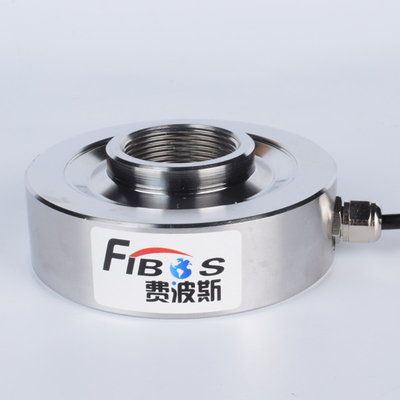

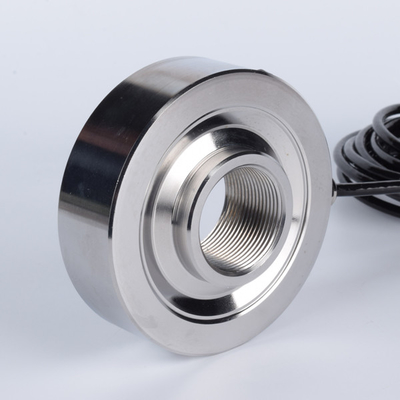

Diameter 80mm 5-50kN Stainless Steel Ring Force Sensor FA118 is a model of our brand FIBOS FA1-Series, it belongs to Ring Force Sensor category, FA118 can be used to measure force 5kN, 10kN, 20kN, 30kN and 50kN, its Rated output range is 1.5±20%mV/V, Zero Balance range is ±3%mV/V, its Creep(30min) and Repeatability both ≤0.1%F.S., its Non-linearity and Hysteresis both ≤0.2%F.S..
2. Specifications
| Product name | Ring Force Sensor |
| Capacity | 5,10,20,30,50kN |
| Rated output | 1.5±20%mV/V |
| Zero Balance | ±3%mV/V |
| Creep(30min) | ≤0.1%F.S. |
| Non-linearity | ≤0.2%F.S. |
| Hysteresis | ≤0.2%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀4x3000mm |
| Material | Stainless steel |
3. Dimension
4. Application
Diameter 80mm 5-50kN Stainless Steel Ring Force Sensor FA118 could be used to measure extrusion pressure.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
