Product Details:
|
| Product Name: | Column Type Load Cell | Capacity: | 5000,10000,20000,50000kN |
|---|---|---|---|
| Non-linearity: | 0.02%,0.05%,0.1%,0.3%F.S. | Material: | Alloy Steel Or Stainless Steel |
| Rated Output: | 2.0±10%mV/V | Zero Balance: | ±1%mV/V |
| IP Class: | IP67 | Maximum Excitation: | 15V |
| Insulation Resistance: | ≥5000MΩ/100V(DC) | ||
| High Light: | SS Column Type Load Cell,IP67 Tensile Force Sensor |
||
1. Description

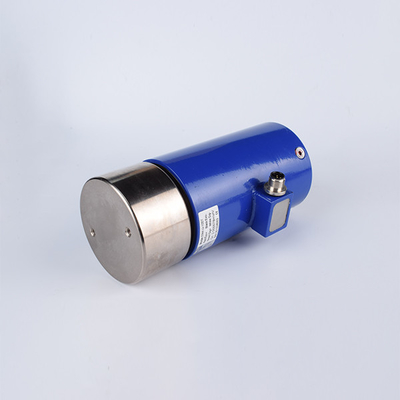

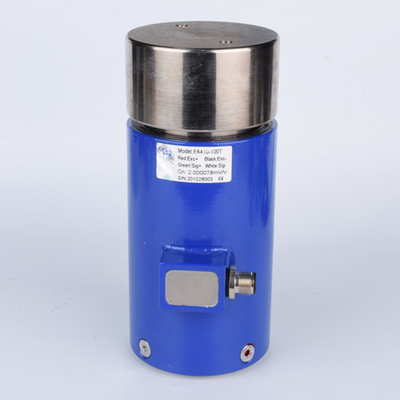

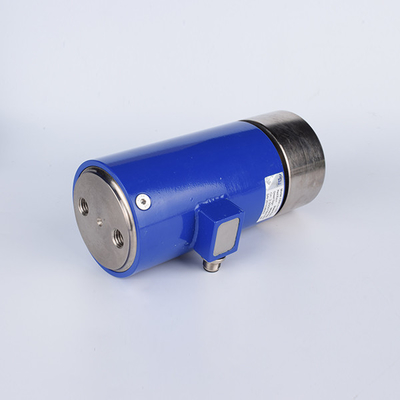

5000kN 10000kN 20000kN 50000kN 0.02%,0.05%,0.1%,0.3%F.S. Column Type Load Cell FA410 is a model of Column Type Load Cell, it can measure load from 5000kN to 50000kN, we usually use Alloy Steel or Stainless Steel as its material. Its Non-linearity and Repeatability both are 0.02%, 0.05%, 0.1%, 0.3%F.S..
2. Specification
| Product name | Column Type Load Cell |
| Capacity | 5000,10000,20000,50000kN |
| Rated output | 2.0±10%mV/V |
| Zero Balance | ±1%mV/V |
| Non-linearity | 0.02%,0.05%,0.1%,0.3%F.S. |
| Repeatability | 0.02%,0.05%,0.1%,0.3%F.S. |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -30~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀5.4x6000mm |
| Material | Alloy Steel/Stainless Steel |
| IP Class | IP67 |
3. Dimension
4. Application
5000kN 10000kN 20000kN 50000kN 0.02%,0.05%,0.1%,0.3%F.S. Column Type Load Cell could mainly be used in tank weighing.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
