Product Details:
|
| Product Name: | Tension Force Sensor | Capacity: | 0.22t, 0.55t, 1.1t, 1.76t, 2.2t, 4.4t Or Customized |
|---|---|---|---|
| Zero Balance: | ±2%F.S. | Sensitivity: | 1.94±0.1%mV/V |
| Material: | Stainless Steel | IP Class: | IP68 |
| Non-linearity: | ≤0.17%F.S. Or Customized | Maximum Excitation: | 20V |
| Recommended Excitation: | 5-15V | Safe Overload: | 150%F.S. |
| Ultimate Overload: | 200%F.S. | Cable Size: | ⌀5.4x1500mm Or Customized |
| High Light: | 1.94mv/V Stainless Steel Load Cell,4.4t Stainless Steel Load Cell |
||

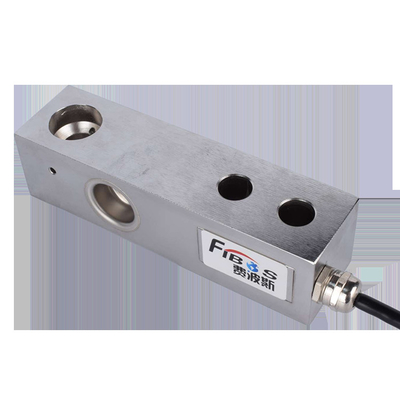

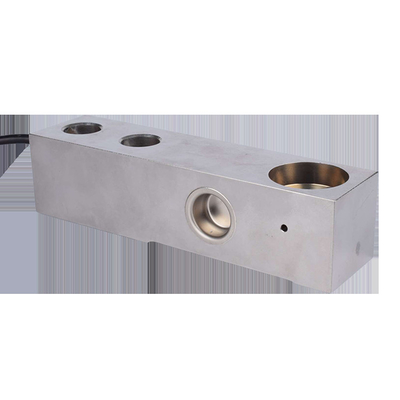

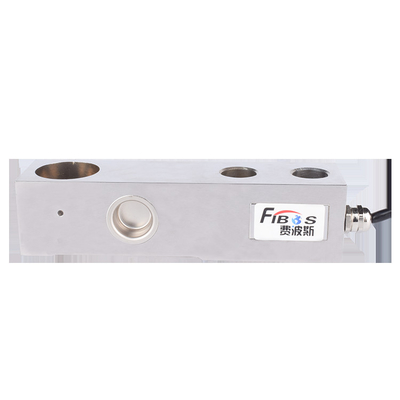

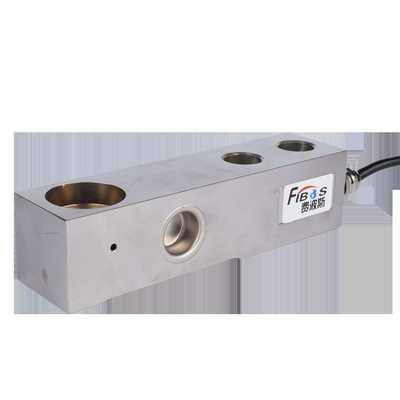

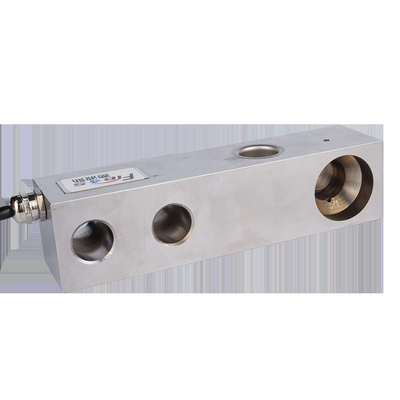

IP68 1.94mv/V Stainless Steel Load Cell 0.22t-4.4t Strain Gauge Weight Sensor
1. Descriptions
1.94mv/V IP68 Stainless Steel Strain Gauge Weight Sensor Tension Force Sensor FA509B is a model of our brand FIBOS FA5-Series, Strain Gauge Weight Sensor Tension Force Sensor FA509B can be used to measure tension force 0.22t-4.4t, It adopts 6-wire connection mode, which can be used for platform scale, belt scale and hopper scale, etc., and it can be customized specifications. its IP Class is IP68.
High precision, suitable for almost any tank, batching, platform scale and level monitoring applications.
Made of stainless steel, it is strong and can be used in harsh environments.
Standard size, multiple range optional.
2. Specifications
3. Dimension
4. Application
1.94mv/V IP68 Stainless Steel Strain Gauge Weight Sensor Tension Force Sensor FA509B, can be used for platform scale, belt scale and hopper scale, etc., and it can be customized specifications. its IP Class is IP68.
