Product Details:
|
| Product Name: | Miniature Force Sensor | Capacity: | 10,20,30,50,100,200kN |
|---|---|---|---|
| Rated Output: | 1.5±10%mV/V | Non-linearity: | ≤0.1%F.S. |
| Repeatability: | ≤0.05%F.S. | Material: | Stainless Steel |
| Input Impedance: | 780±20Ω | Output Impedance: | 700±10Ω |
| Insulation Resistance: | ≥5000MΩ/100VDC | Recommended Excitation: | 5~15V |
| Maxmum Excitation Voltage: | 20V | Compensated Temp Range: | -10~60℃ |
| Operating Temp Range: | -20~80℃ | Temp.effect On Output: | 0.05%F.S./10℃ |
| Temp.effect On Zero: | 0.05%F.S./10℃ | Cable Size: | ⌀4X3000mm |
| High Light: | 200kN Miniature Force Sensor,1.5mV/V Miniature Force Sensor |
||

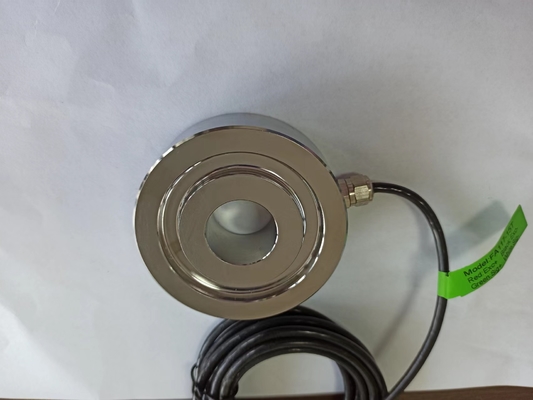

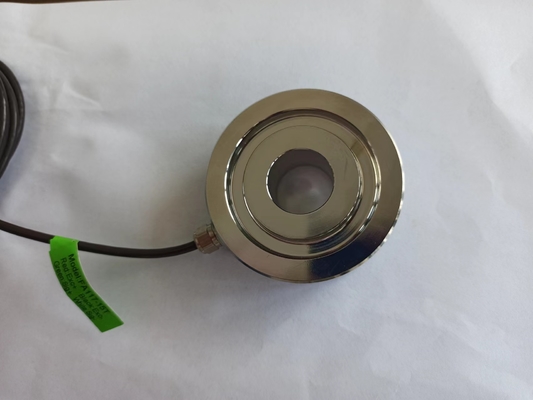

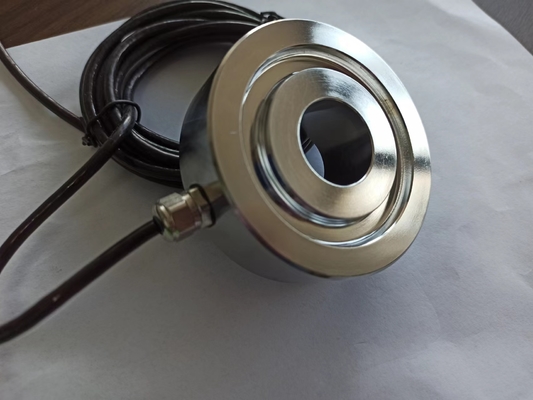

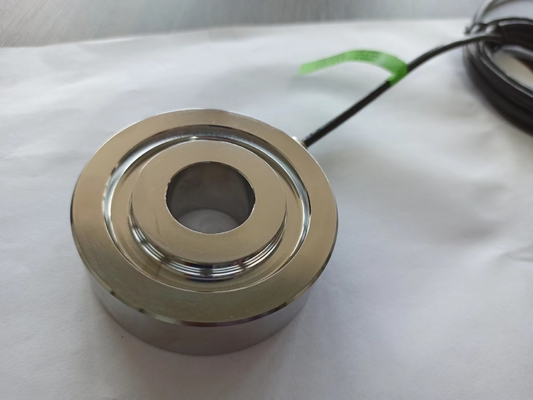

10-200kN Stainless Steel Miniature Force Sensor
1. Descriptions
Stainless Steel 10-200kN Miniature Force Sensor Complete Certificate Load Cell FA117 is a model of our brand FIBOS FA1-Series, Miniature Force Transducer FA117 can be used to measure force ranges from 10KN,20KN,30KN,50KN,100KN up to 200KN capacity.
Stainless Steel 10-200kN Miniature Force Sensor Complete Certificate Load Cell FA117 adopts column structure and double flange design, which is easy to install. Large range load cell, based on resistance strain gauge technology, made of stainless steel. Stainless Steel 10-200kN Miniature Force Sensor Complete Certificate Load Cell FA117 uses German-made technology and has IP68 waterproof grade.
2. Specifications
| Product name | Miniature Force Sensor |
| Capacity | 10,20,30,50,100,200kN |
| Rated output | 1.5±10%mV/V |
| Zero Balance | ±0.03mV/V |
| Creep(30min) | ≤0.1%F.S. |
| Non-linearity | ≤0.1%F.S. |
| Hysteresis | ≤0.1%F.S. |
| Repeatability | ≤0.05%F.S. |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀4x3000mm |
| Weight | 1kg |
| Material | Stainless steel |

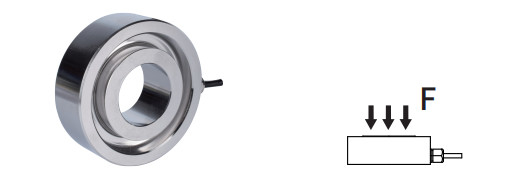

3. Dimension
4. Application
Stainless Steel 10-200kN Miniature Force Sensor Complete Certificate Load Cell FA117 could be used for chemical fiber scales, And measure force ranges from 10KN,20KN,30KN,50KN,100KN up to 200KN capacity.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
