Product Details:
|
| High Light: | 20KN Miniature Force Sensor,3C Products Miniature Force Sensor |
||
|---|---|---|---|

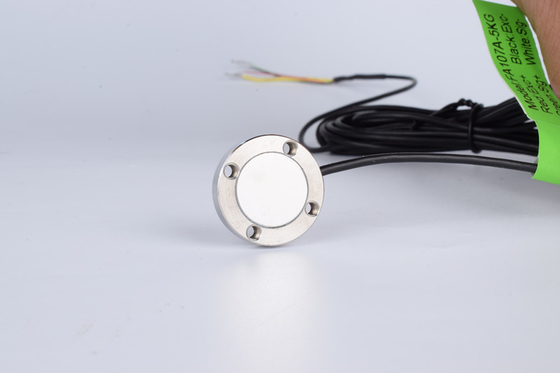

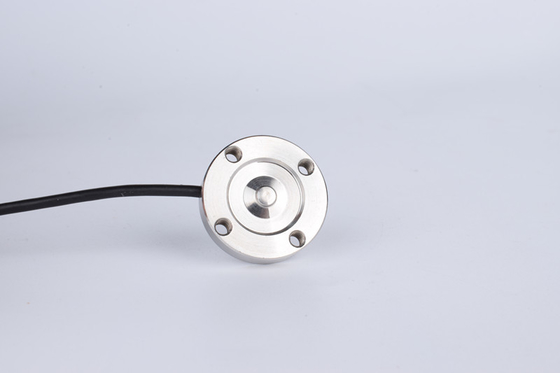

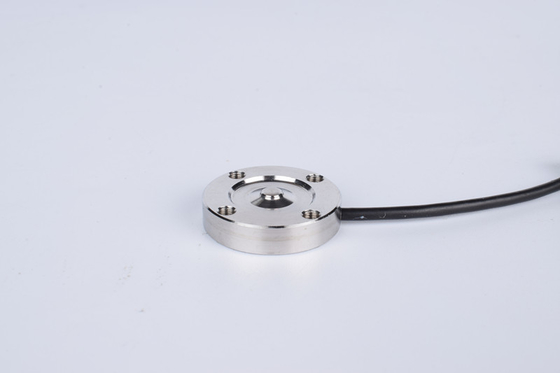

Fibos FA107 Stainless Steel 500N 20KN Miniature Force Sensor For 3C Products Plugging Force Aassembly Force Measurement
1. Descriptions
Mini load cell, profile small, little deformation,
Material stainless steel
High-temperature resistance could be customized and used in injection and Backlog process
High dynamic response frequency
2. Dimension
3. Specifications
| Product name | Miniature Force Sensor |
| Capacity | 50,100,200,500N 1,2,5,10,20KN |
| Rated output | 1.0±15%mV/V |
| Zero balance | ±0.05mV/V customized |
| Creep(30min) | ≤0.025%F.S. or customized |
| Non-linearity | ≤0.023%F.S. or customized |
| Hysteresis | ≤0.023%F.S. or customized |
| Repeatability | ≤0.025%F.S. or customized |
| Input resistance | 800~1100Ω |
| Output resistance | 800~1100Ω |
| Temp.effect on output | 0.05%F.S./10 C |
| Temp.effect on zero | 0.05%F.S./10 C |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60 ℃ |
| Operating temp range | -20~80 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | ⌀1.2x3000mm or customized |
| Weight | 0.19kg or customized |
| Material | Stainless steel or customized |
4. Application
Used in car press and mount, 3C product testing, new energy product assembly, medical testing, robotic field, and so on
5. FAQ
Q1: What are your terms of delivery?
A: EXW, FOB, CFR, and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with a discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has a quality problem within 12 months, please return it to us, and we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation, and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
