Product Details:
|
| Product Name: | Ring Force Sensor | Capacity: | 10,20,50,100,200,500kg |
|---|---|---|---|
| Creep(30min): | ≤0.2%F.S. | Non-linearity: | ≤0.5%F.S. |
| Hysteresis: | ≤0.3%F.S. | Repeatability: | ≤0.2%F.S. |
| Input Impedance: | 780±20Ω | Output Impedance: | 700±10Ω |
| Material: | Alloy Steel | Cable Size: | φ4x3000mm |
| High Light: | 100kg Ring Force Sensor,500kg Through Hole Force Sensor |
||

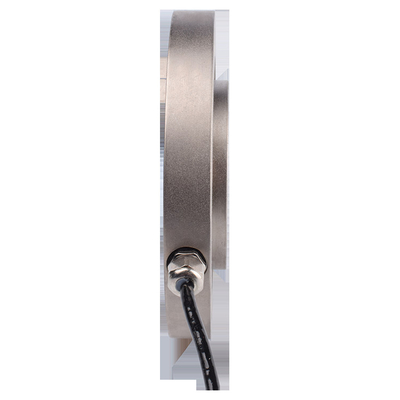

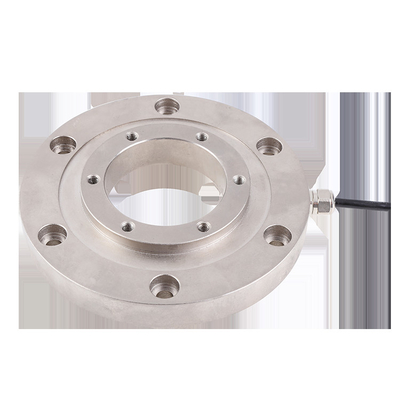

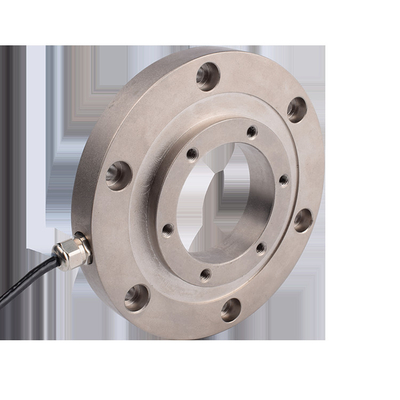

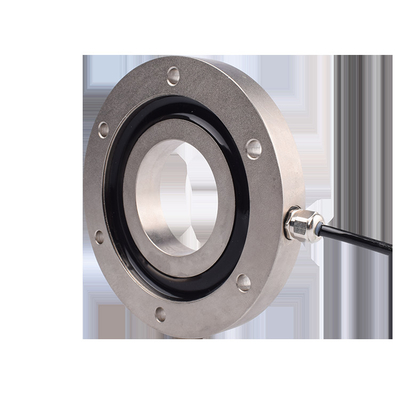

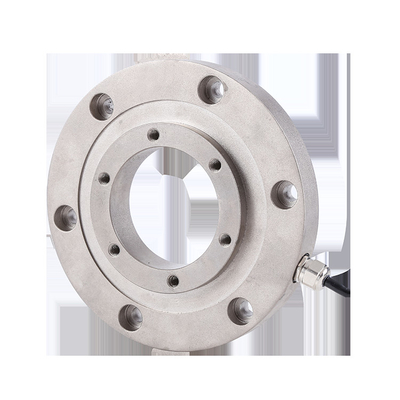

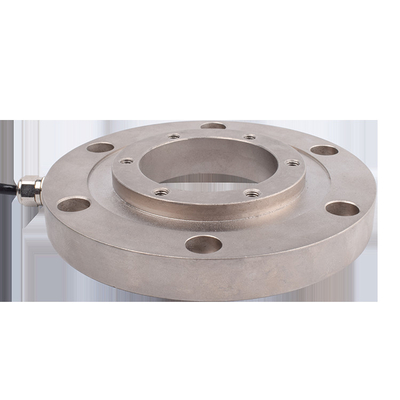

10,20,50,100,200,500kg Ring Force Sensor Alloy steel through hole force sensor
1. Descriptions
10,20,50,100,200,500kg Ring Force Sensor Alloy steel through houle force sensor FA128 is a special model of our brand FIBOS FA1-Series, it also belongs to Ring Force Sensor category. FA128 can be used to measure force 10,20,50,100,200,500kg or customized capacity, its Creep(30min)≤0.2%F.S.,Non-linearity ≤0.5%F.S. , its Hysteresis ≤0.3%F.S.
2. Specifications
| Product name | Ring Force Sensor |
| Capacity | 10,20,50,100,200,500kN |
| Sensitivity | 1.0±10%mV/V |
| Zero Balance | ±0.03mV/V |
| Creep(30min) | ≤0.2%F.S. |
| Non-linearity | ≤0.5%F.S. |
| Hysteresis | ≤0.3%F.S. |
| Repeatability | ≤0.2%F.S. |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Temp.effect on output | 0.1%F.S./10 ℃ |
| Temp.effect on zero | 0.1%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀4x3000mm |
| Material | Alloy steel |
3. Dimension
4. Application
10,20,50,100,200,500kg Ring Force Sensor alloy steel through hole force sensor FA128 could be used for other industrial control force value detection.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
