Product Details:
|
| Capacity: | 0.1,0.2,0.3,0.5,1,2,3,5N.m | Rated Output: | 1.0~1.5mV/V |
|---|---|---|---|
| Non-linearity: | ≤0.2%F.S. | Repeatability: | ≤0.1%F.S. |
| IP Class: | IP66 | Product Name: | Dynamic Torque Sensor |
| Safe Overload: | 120%F.S. | Cable Size: | 3m |
| High Light: | 5NM Capacity Dynamic Torque Sensors,Dynamic Torque Sensors Ip66,RoHS Rotary Torque Sensors |
||

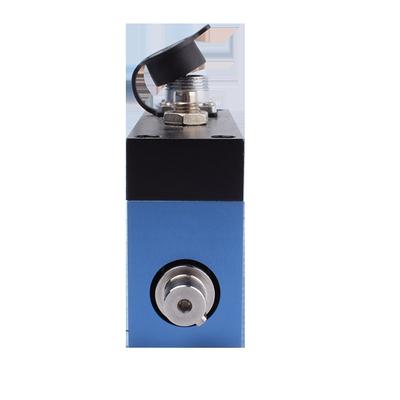

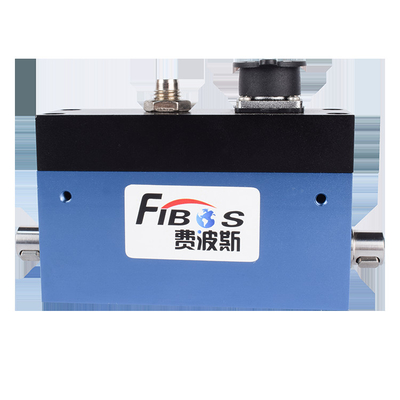

0.1~5N.m capacity Dynamic torque sensors Ip66 Rotary torque sensors
1. Descriptions
0.1-5N·M IP66 Dynamic Torque Sensor FA605 is a model of our brand FIBOS FA6-Series, FA605 belongs to Torque Force Sensor, it can be used to measure torque force0.1,0.2,0.3,0.5,1,2,3,5N.m capacity, its Creep(30min)≤0.1%F.S,Non-linearity ≤0.2%F.S., its Repeatability ≤0.1%F.S., its Cable size is 3m.
Torque measurement: Strain gauge electrical measurement technology is used to form a strain bridge on the elastic axis.
1. The signal output can choose any waveform ─ square wave or pulse wave.
2. High detection accuracy, good stability, and strong anti-interference.
3. Continuous measurement of forward and reverse torque without repeated zeroing.
2. Specifications
| Product name | Dynamic Torque Sensor |
| Capacity | 0.1,0.2,0.3,0.5,1,2,3,5N.m |
| Rated output | 1.0~1.5mV/V |
| Zero Balance | ±0.01mV/V |
| Creep(30min) | ≤0.1%F.S. |
| Non-linearity | ≤0.2%F.S. |
| Hysteresis | ≤0.2%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 350±10Ω |
| Output impedance | 350±10Ω |
| Temp.effect on output | 0.1%F.S./10 ℃ |
| Temp.effect on zero | 0.1%F.S./10 ℃ |
| Insulation resistance | ≥2000MΩ/100V(DC) |
| Recommended excitation | 12V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -30~60 ℃ |
| Safe overload | 120%F.S. |
| Ultimate overload | 150%F.S. |
| Cable size | 3m |
| IP Class | IP66 |
3. Dimension
4. Application
0.1-5N·M IP66 Dynamic Torque Sensor FA605 could be used for internal combustion engines.
Dynamic torque measurement for railway locomotive power, automotive power, tractor power, aircraft power, ship power, mining machinery power, sewage treatment systems.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
