Product Details:
|
| Product Name: | Miniature Force Sensor | Capacity: | 100,200,500N |
|---|---|---|---|
| Rated Output: | 1.0±20% MV/V | Non-linearity: | ≤0.5%F.S. |
| Repeatability: | ≤0.5%F.S. | Material: | Stainless Steel |
| Safe Overload: | 150%F.S. | Ultimate Overload: | 200%F.S. |
| High Light: | FA101 Mini Force Sensor,100N Mini Force Sensor,500N Button Force Measurement Transducers |
||

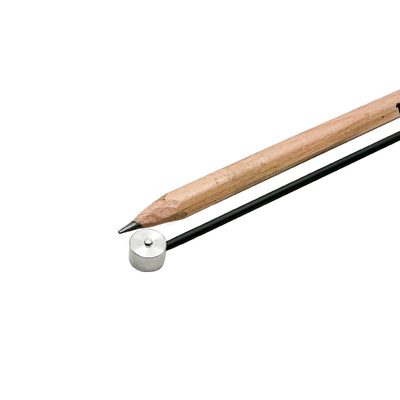

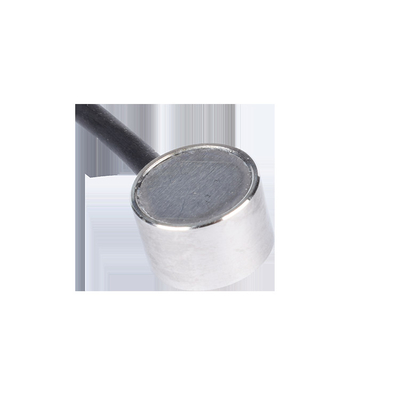

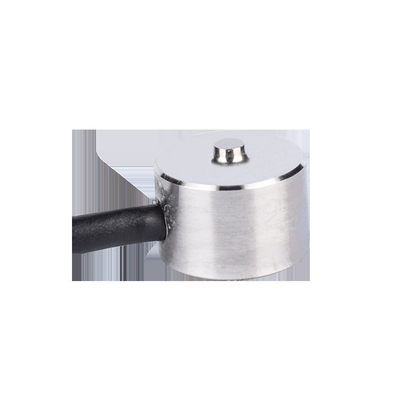

100-500N FA101 Mini Force Sensor Stainless Steel Button Force Measurement Transducers
1. Descriptions

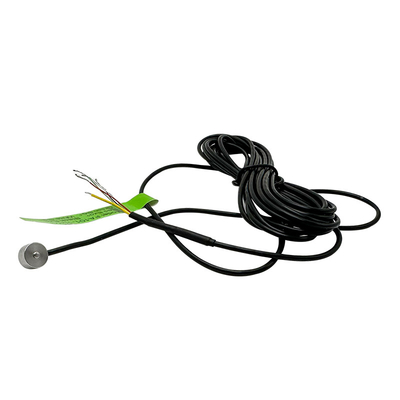

100-500N Stainless Steel Miniature Force Sensor FA101 is a model of our brand FIBOS FA1-Series, Miniature Force Sensor FA101 can be used to measure force 100N,200N,500N capacity, its Rated output range is 1.0±20% mV/V, and its Zero balance range is ±1%F.S., its Cable size is ⌀2x3000mm.
In the measurement process of the micro-pressure sensor, the pressure directly acts on the diaphragm of the sensor, so that the diaphragm generates a micro displacement proportional to the medium pressure, so that the resistance of the sensor changes, and the electronic circuit detects the change, and converts a standard signal corresponding to the pressure, such a process is the measurement process of the micro-pressure sensor.
2. Specifications
| Product name | miniature force sensor |
| Capacity | 100,200,500N |
| Rated output | 1.0±20% mV/V |
| Zero balance | ±2%F.S. |
| Creep(30min) | ≤0.5%F.S. |
| Non-linearity | ≤0.5%F.S. |
| Hysteresis | ≤0.5%F.S. |
| Repeatability | ≤0.5%F.S. |
| Input resistance | 600~800Ω |
| Output resistance | 600~800Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60 ℃ |
| Operating temp range | -20~80 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | ⌀2x3000mm |
| Weight | 0.02kg |
| Material | Stainless steel |

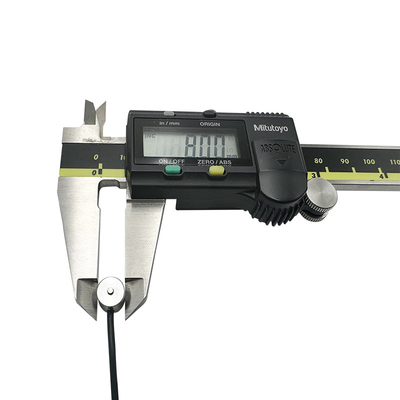

3. Dimension
4.Advantages:

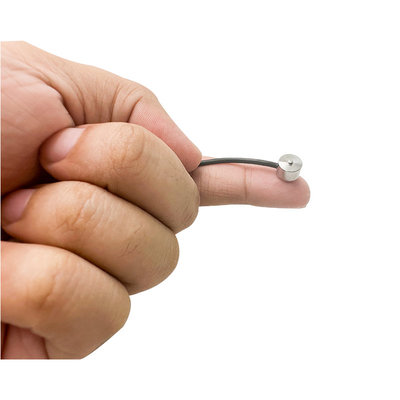

low height, small deformation, small size; High precision, good long-term stability, good reliability, fatigue resistance, impact resistance, high frequency of use. Because it is stainless steel, the cable shield and sensor housing are electrically connected to form the Faraday cage. This also ensures that it can be used for interference-free measurement under unfavorable electromagnetic compatibility conditions. The operating temperature range is -20℃~80℃.
5. Application
automotive press assembly, automatic assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing, measurement and control systems
6.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
