Product Details:
|
| Product Name: | Torque Force Sensor | Capacity: | 0.1,0.2,0.3,0.5,1,2,3, 5,10,20,30,50,100,200, 300,500N.m Or Customized |
|---|---|---|---|
| Rated Output: | 1.0~1.5mV/V | Zero Balance: | ±0.01mV/V |
| Creep（30min）: | ≤0.1%F.S. | Non-linearity: | ≤0.2%F.S. |
| Hysteresis: | ≤0.2%F.S. | Repeatability: | ≤0.1%F.S. |
| Input Resistance: | 350/700±10Ω | Temp.effect On Output: | 0.02%F.S./10 C |
| Insulation Resistance: | ≥2000MΩ/100V(DC) | Recommended Excitation: | 12V |
| Operating Temp Range: | -20~60 C | Safe Load Limit: | 120%F.S. |
| Cable Size: | 3m | IP Class: | IP66 |
| High Light: | 500N.M Static Torque Meter,IP66 Static Torque Meter,CE Force Torque Sensor |
||

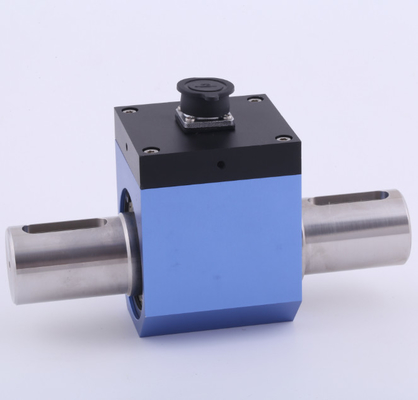

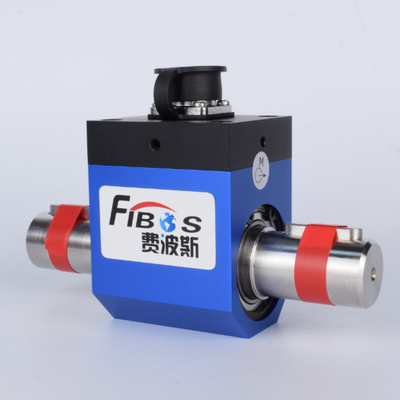

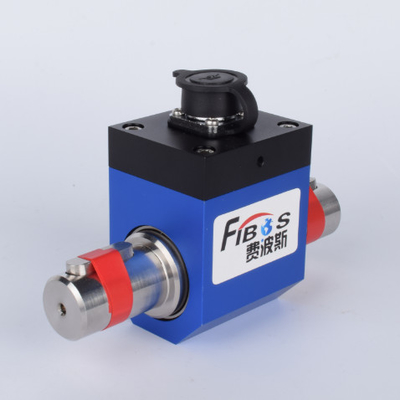

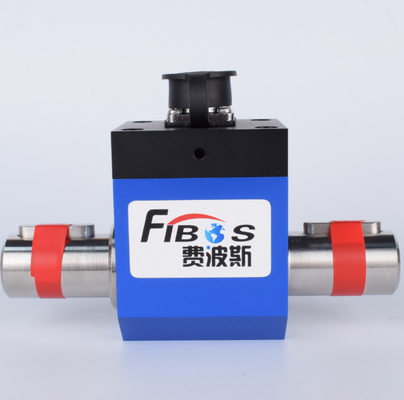

0.1-500N.M Static Torque Meter Rotary Torque Force Transducer IP66 CE Certificate Load Cell Stainless Steel
1. Descriptions
Multirange rotational torque transducer NF604 uses metal foil strain gauge technology. The dynamic torque load cell is an integrated product composed of a sensitive element and an integrated circuit. This rotational torque transducer has no wearing parts such as a collecting ring, so it can operate at high speed for a long time.
Compact structure
Multirange
High precision
2. Specifications
| Product name | Torque Force Sensor |
| Capacity | 0.1,0.2,0.3,0.5,1,2,3, 5,10,20,30,50,100,200, 300,500N.m Or Customized |
| Rated output | 1.0~1.5mV/V |
| Zero Balance | ±0.01mV/V |
| Creep(30min) | ≤0.1%F.S. |
| Non-linearity | ≤0.2%F.S. |
| Hysteresis | ≤0.2%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 350/700±10Ω |
| Output impedance | 350/700±10Ω |
| Temp.effect on output | 0.02%F.S./10 ℃ |
| Temp.effect on zero | 0.02%F.S./10 ℃ |
| Insulation resistance | ≥2000MΩ/100V(DC) |
| Recommended excitation | 12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~60 ℃ |
| Safe overload | 120%F.S. |
| Ultimate overload | 150%F.S. |
| Cable size | 3m |
| Material | Stainless Steel or customized |
| IP Class | IP66 |
3. Dimension
Need to be customized
4. Application
Industrial measurement
Screw locking torque monitoring
Automatic machine tool torque
5. Packaging & delivery
Packaging Details
1.Opp bag
2.Custom box
3.According to your request
Port: Shanghai
6. Company
Fibos Measurement Technology (Changzhou) Co., Ltd. is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers.
With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.
7. Production
8. Exhibition
9. Certification
10.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
