Product Details:
|
| Product Name: | Spoke Type Load Cell | Capacity: | 1,2,10,20,30,50,100,150,200,300t Or Customized |
|---|---|---|---|
| Non-linearity: | ≤0.02%F.S. Or Customized | Repeatability: | ≤0.02%F.S. Or Customized |
| Rated Output: | 2.0±1%mV/V | Application: | Electronic Force Measurement Systems |
| High Light: | 2mv v pancake type load cell,2t pancake type load cell,0.02% compression force sensor |
||

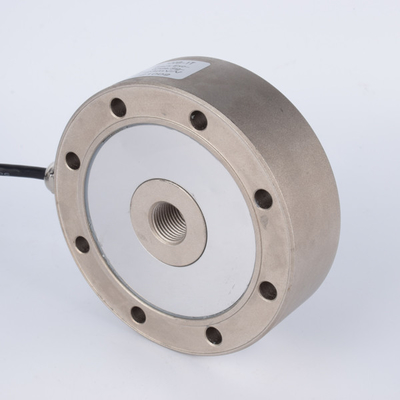

Pancake Load Cell 1,2,10,20,30,50,100,150,200,300t Or Customized Spoke Type Load Cell
1. Descriptions
Pancake Load Cell 1,2,10,20,30,50,100,150,200,300t Or Customized Spoke Type Load Cell FA120G belongs to FA120 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA120G can be used to measure load 1t,2t,10t,20t,30t,50t,100t,150t,200t and 300t or customized capacity, its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.02%F.S. or can be customized.
2. Specifications
| Product name | Spoke Type Load Cell |
| Capacity | 1,2,10,20,30,50,100,150,200,300t or customized |
| Rated output | 2.0±1%mV/V |
| Zero Balance | ±1%F.S. |
| Creep(30min) | ≤0.02%F.S. or customized |
| Non-linearity | ≤0.02%F.S. or customized |
| Hysteresis | ≤0.02%F.S. or customized |
| Repeatability | ≤0.02%F.S. or customized |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Temp.effect on output | 0.02%F.S./10 ℃ |
| Temp.effect on zero | 0.02%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -10~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀3x3000mm or customized |
3. Dimension
4. Application
Pancake Load Cell 1,2,10,20,30,50,100,150,200,300t Or Customized Spoke Type Load Cell FA120G could be applied in electronic force measurement systems.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
