Product Details:
|
| Product Name: | Tension Compression Force Sensor | Capacity: | 50,100,200,500,1000N |
|---|---|---|---|
| Rated Output: | 1.0±20%mV/V | Non-linearity: | ≤0.5%F.S. |
| Repeatability: | ≤0.1%F.S. | Material: | Stainless Steel |
| High Light: | 50n Tension Compression Force Sensor,1000n Tension Compression Force Sensor,0.5% miniature load cell sensor |
||

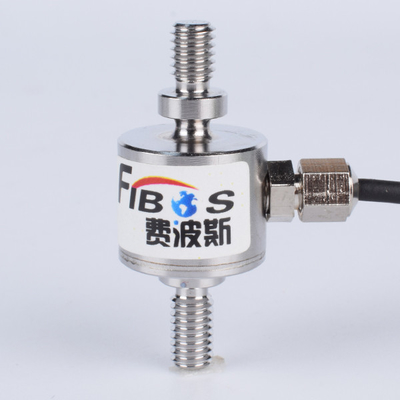

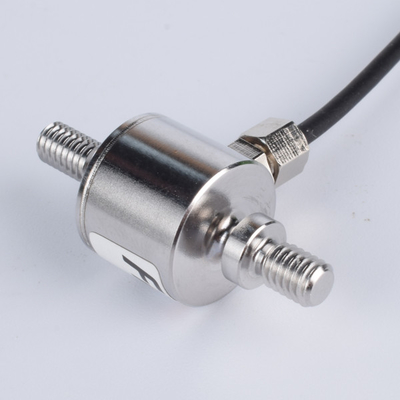

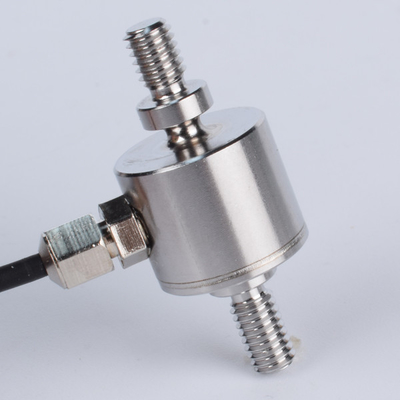

Diameter 13mm 50-1000N Miniature Tension Compression Force Sensor
1. Descriptions
Diameter 13mm 50-1000N Miniature Tension Compression Force Sensor FA201A is a model of our brand FIBOS FA2-Series, Tension Compression Force Sensor FA201A belongs to FA201, it can be used to measure tension and compression force 50N,100N,200N,500N,1000N and 2000N or customized capacity, its Zero Balance range is ±0.2mV/V.
2. Specifications
| Product name | Tension Compression Force Sensor |
| Capacity | 50,100,200,500,1000,2000N or customized |
| Rated output | 1.0±20%mV/V |
| Zero Balance | ±0.2mV/V |
| Creep(30min) | ≤0.2%F.S. or customized |
| Non-linearity | ≤0.2%F.S. or customized |
| Hysteresis | ≤0.3%F.S. or customized |
| Repeatability | ≤0.1%F.S. or customized |
| Input impedance |
800~1100Ω |
| Output impedance | 800~1100Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀2x3000mm or customized |
| Weight | 0.2kg or customized |
| Material | Stainless steel or customized |
4. Application
Diameter 13mm 50-1000N Miniature Tension Compression Force Sensor FA201A could be applied for material testing machine.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
