Product Details:
|
| Product Name: | Tension Compression Force Sensor | Capacity: | 1,3,5,10,30,50,100,300,500,1000,3000,5000,10000,30000,50000,100000,300000N Or Customized |
|---|---|---|---|
| Rated Output: | 0.6±20%mV/V | Zero Balance: | ±2%mV/V |
| Creep(30min): | ≤0.032%F.S. Or Customized | Weight: | 0.22kg Or Customized |
| High Light: | 3n tension force transducer,50000n tension force transducer,industrial scale 10kn load cell |
||
1,3,5,10,30,50,100,300,500,1000,3000,5000,10000,30000,50000,100000,300000N Or Customized Tension Compression Force Sensor
1. Descriptions

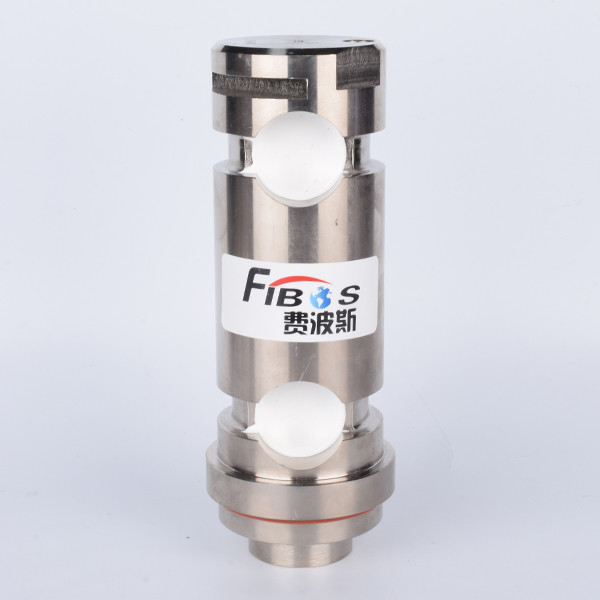

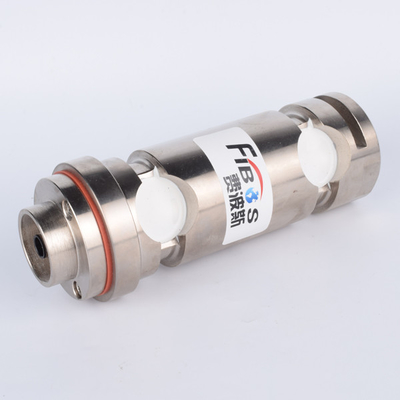

1,3,5,10,30,50,100,300,500,1000,3000,5000,10000,30000,50000,100000,300000N Or Customized Tension Compression Force Sensor FA904AB belongs to FA904 which belongs to Tension Compression Force Sensor category of our brand FIBOS FA9-Series, FA904AB can be used to measure tension force ranges from 1N,3N,5N,10N,30N,50N,100N,300N,500N,1000N,3000N,5000N,10000N,30000N,50000N,100000N up to 300000N or customized capacity.
2. Specifications
| Product name | Tension Force Sensor |
| Capacity | 1,3,5,10,30,50,100,300,500,1000,3000,5000,10000,30000,50000,100000,300000N or customized |
| Rated output | 0.6±20%mV/V |
| Zero Balance | ±2%mV/V |
| Creep(30min) | ≤0.032%F.S. or customized |
| Non-linearity | ≤0.031%F.S. or customized |
| Hysteresis | ≤0.033%F.S. or customized |
| Repeatability | ≤0.031%F.S. or customized |
| Input impedance | 350±10Ω |
| Output impedance | 300±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -20~60 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀3x2500mm or customized |
| Material | Stainless steel or customized |
| Weight | 0.22kg or customized |
3. Dimension
Need to be customized
4. Application
1,3,5,10,30,50,100,300,500,1000,3000,5000,10000,30000,50000,100000,300000N Or Customized Tension Compression Force Sensor FA904AB can be used for industrial scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
