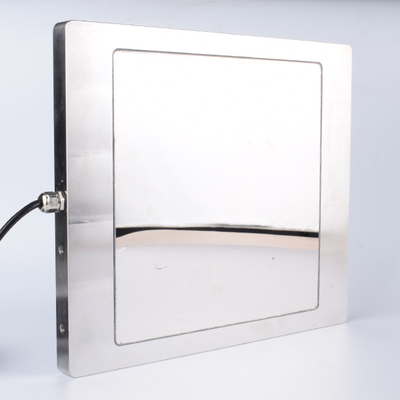

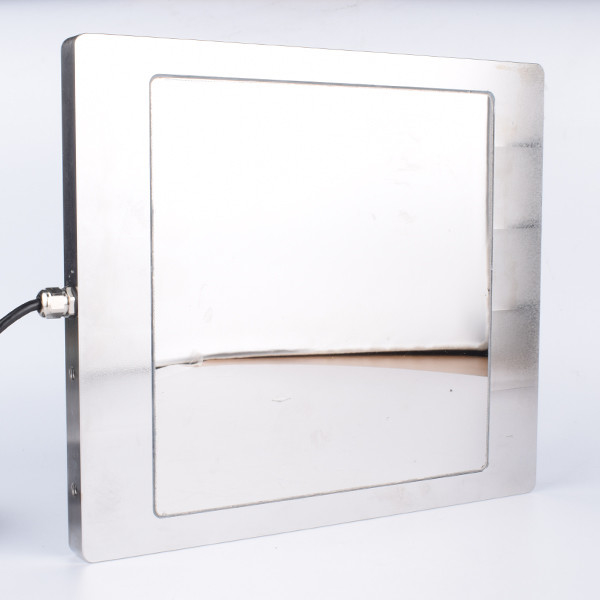

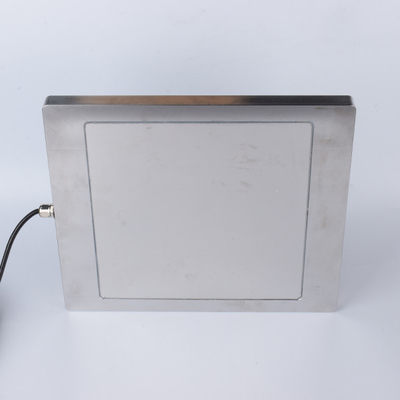

0.15% Tension Compression Load Cell 50 To 2000kg Load Cell Alloy Steel

0.15% Tension Compression Load Cell 50 To 2000kg Load Cell Alloy Steel
0.15% Tension Compression Load Cell 50 To 2000kg Load Cell Alloy Steel 0.15% Tension Compression Load Cell 50 To 2000kg Load Cell Alloy Steel 0.15% Tension Compression Load Cell 50 To 2000kg Load Cell Alloy Steel

Large Image :  0.15% Tension Compression Load Cell 50 To 2000kg Load Cell Alloy Steel

Product Details:
Place of Origin: Jiangsu, China
Brand Name: FIBOS
Certification: ISO CE RoHS
Model Number: FA130B
Payment & Shipping Terms:
Minimum Order Quantity: To Be Negotiated
Price: To Be Negotiated
Packaging Details: 1.Opp bag 2.Custom box 3.According to your request
Delivery Time: 1-7 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 Pieces per Month

0.15% Tension Compression Load Cell 50 To 2000kg Load Cell Alloy Steel

Description
Product Name: Tension Compression Force Sensor Capacity: 50,100,200,500,1000,2000kg Or Customized
Creep(30min): ≤0.15%F.S. Or Customized Non-linearity: ≤0.16%F.S. Or Customized
Hysteresis: ≤0.15%F.S. Or Customized Repeatability: ≤0.16%F.S. Or Customized
High Light:

0.15% tension compression load cell

,

50kg tension compression load cell

,

alloy steel 2000kg load cell

50,100,200,500,1000,2000kg Or Customized Tension Compression Force Sensor



1. Descriptions

50,100,200,500,1000,2000kg Or Customized Tension Compression Force Sensor FA130B belongs to FA130 which belongs to Tension Compression Force Sensor, FA130B can be used to measure compression force and tension force 50kg,100kg,200kg,500kg,1000kg and 2000kg or customized capacity, its Zero Balance range is ±0.5mV/V.



2. Specifications



Product name Tension Compression Force Sensor
Capacity 50,100,200,500,1000,2000kg or customized
Rated output 1.0±20%mV/V
Zero Balance ±0.5mV/V
Creep(30min) ≤0.15%F.S. or customized
Non-linearity ≤0.16%F.S. or customized
Hysteresis ≤0.15%F.S. or customized
Repeatability ≤0.16%F.S. or customized
Input impedance 800~1100Ω
Output impedance 800~1100Ω
Temp.effect on output 0.05%F.S./10 ℃
Temp.effect on zero 0.05%F.S./10 ℃
Insulation resistance ≥5000MΩ/100V(DC)
Recommended excitation 5~12V
Maximum excitation 15V
Compensated Temp Range -10~60 ℃
Operating Temp Range -20~80 ℃
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size ⌀4x3000mm or customized
Weight 0.35kg or customized
Material Alloy steel or customized



3. Dimension

Need to be customized



4. Application

50,100,200,500,1000,2000kg Or Customized Tension Compression Force Sensor FA130B could be used to measure and test equipment.



5.FAQ

Q1: What is your terms of delivery?

A: EXW, FOB, CFR and CIF.



Q2: Can you produce according to the samples?

A: Yes, we can produce according to your samples or technical drawings.



Q3:What is your sample policy?

A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.



Q4: What's your quality guarantee policy?

A: Quality guarantee: 12 months.

If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.

And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
