Product Details:
|
| Product Name: | Tension Compression Force Sensor | Capacity: | 3t |
|---|---|---|---|
| Rated Output: | 1.0±10%mV/V | Non-linearity: | ≤0.2%F.S. |
| Repeatability: | ≤0.1%F.S. | Material: | Alloy Steel |
| High Light: | alloy steel tension and compression load cell,3t tension and compression load cell,tension force transducer load cell |
||

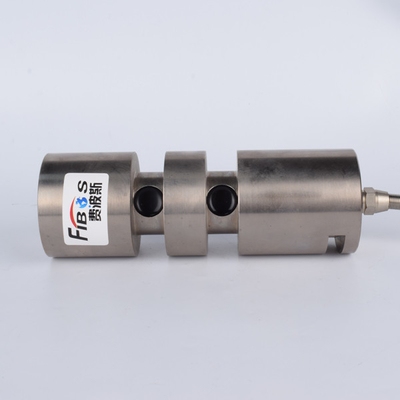

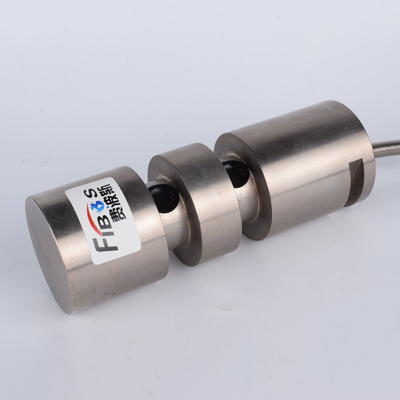

3t Alloy Steel Tension Compression Force Sensor
1. Descriptions
3t Alloy Steel Tension Compression Force Sensor FA904 is a model of our brand FIBOS FA9-Series, Tension Compression Force Sensor FA904 can be used to measure force of tension and compression 3t capacity, its Rated output range is 1.0±10%mV/V, its Creep(30min) and Repeatability both ≤0.1%F.S., its Non-linearity and Hysteresis both ≤0.2%F.S..
2. Specifications
| Product name | Tension Compression Force Sensor |
| Capacity | 3t |
| Rated output | 1.0±10%mV/V |
| Zero Balance | ±2%mV/V |
| Creep(30min) | ≤0.1%F.S. |
| Non-linearity | ≤0.2%F.S. |
| Hysteresis | ≤0.2%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input resistance | 780±20Ω |
| Output resistance | 700±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60 ℃ |
| Operating temp range | -20~80 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | Aviation plug * 3m |
| Material | Alloy steel |
3. Dimension
4. Application
3t Alloy Steel Tension Compression Force Sensor FA904 could be applied for hook scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
