Product Details:
|
| Product Name: | Tension Compression Force Sensor | Capacity: | 50,100,200,300,500kg Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.06%F.S. Or Customized | Non-linearity: | ≤0.06%F.S. Or Customized |
| Hysteresis: | ≤0.07%F.S. Or Customized | Repeatability: | ≤0.08%F.S. Or Customized |
| High Light: | stainless steel Tension Compression Force Sensor,100kg Tension Compression Force Sensor,5v load cell force gauge |
||

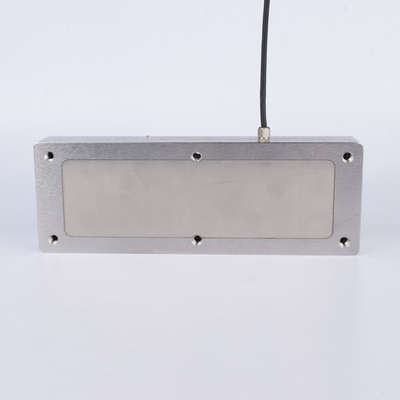

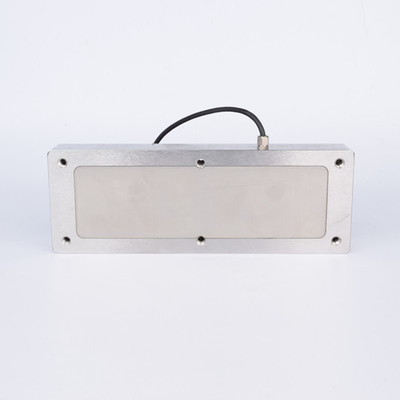

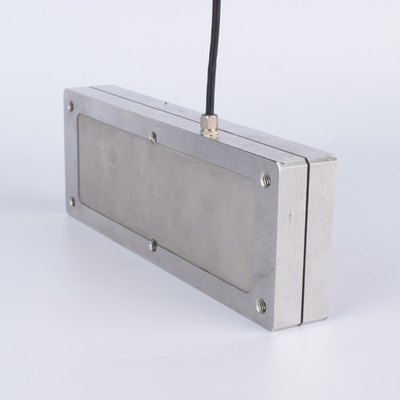

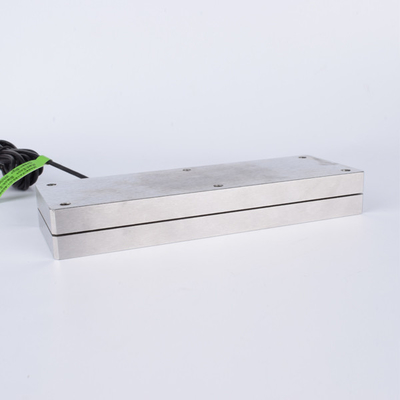

50,100,200,300,500kg Or Customized Tension Compression Force Sensor
1. Descriptions
50,100,200,300,500kg Or Customized Tension Compression Force Sensor FA130A belongs to FA130 which is in Tension Compression Force Sensor category in our brand FIBOS FA1-Series, FA130A can be used to measure tension and compression force ranges from 50kg,100kg,200kg,300kg up to 500kg or customized capacity.
2. Specifications
| Product name | Tension Compression Force Sensor |
| Capacity | 50,100,200,300,500kg or customized |
| Rated output | 1.0±20%mV/V |
| Zero Balance | ±0.5mV/V |
| Creep(30min) | ≤0.06%F.S. or customized |
| Non-linearity | ≤0.06%F.S. or customized |
| Hysteresis | ≤0.07%F.S. or customized |
| Repeatability | ≤0.08%F.S. or customized |
| Input impedance | 800~1100Ω |
| Output impedance | 800~1100Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀3x2500mm or customized |
| Weight | 0.3kg or customized |
| Material | Stainless steel or customized |
3. Dimension
Need to be customized
4. Application
50,100,200,300,500kg Or Customized Tension Compression Force Sensor FA130A could be used to assemble products on the production line.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
