Product Details:
|
| Product Name: | Spoke Type Load Cell | Capacity: | 50,100,200,500kg; 1t |
|---|---|---|---|
| Rated Output: | 2.0±10%mV/V | Non-linearity: | ≤0.05%F.S. |
| Repeatability: | ≤0.03%F.S. | Material: | >50kg=Alloy Steel; 50kg=Aluminum Alloy |
| High Light: | Aluminum wheel force transducer,1t wheel force transducer,500kg force transducer load cell |
||

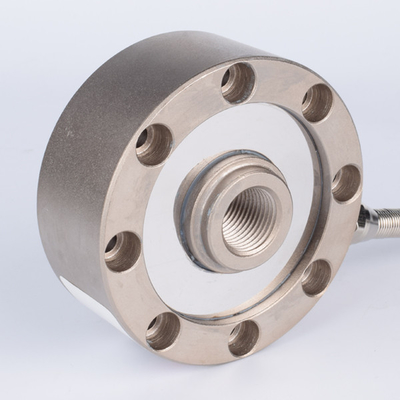

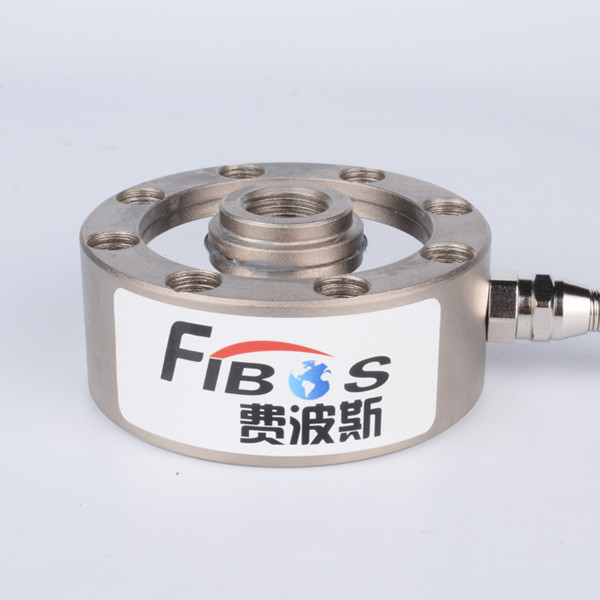

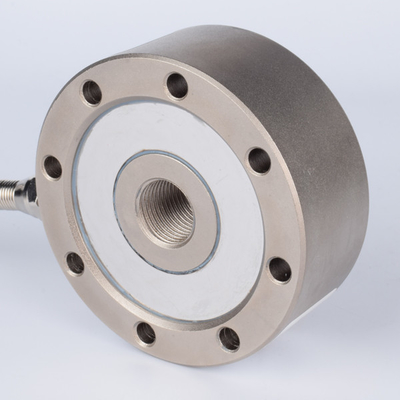

50-500kg 1t Alloy Steel Aluminum Alloy Spoke Type Load Cell
1. Descriptions
50-500kg 1t Alloy Steel Aluminum Alloy Spoke Type Load Cell FA120A is a model of our brand FIBOS FA1-Series, it belongs to FA120 which is in Spoke Type Load Cell category, FA120A can be used to measure load 50kg,100kg,200kg,500kg and 1t capacity, its Creep(30min) and Repeatability both ≤0.03%F.S., and its Non-linearity and Hysteresis both ≤0.05%F.S..
2. Specifications
| Product name | Spoke Type Load Cell |
| Capacity | 50,100,200,500kg; 1t |
| Rated output | 2.0±10%mV/V |
| Zero Balance | ±1%mV/V |
| Creep(30min) | ≤0.03%F.S. |
| Non-linearity | ≤0.05%F.S. |
| Hysteresis | ≤0.05%F.S. |
| Repeatability | ≤0.03%F.S. |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -20~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀6x5000mm |
| Material | >50kg=Alloy steel; 50kg=Aluminum alloy |
3. Dimension
4. Application
50-500kg 1t Alloy Steel Aluminum Alloy Spoke Type Load Cell FA120A can be used for material testing machine.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
