Product Details:
|
| Product Name: | Spoke Type Load Cell | Capacity: | 100,150,200,250t |
|---|---|---|---|
| Rated Output: | 2.0±1%mV/V | Non-linearity: | ≤0.1%F.S. |
| Repeatability: | ≤0.05%F.S. | Safe Overload: | 150%F.S. |
| High Light: | 100 ton Spoke Type Load Cell,700 ohm Spoke Type Load Cell,250 ton strain gauge force transducer |
||

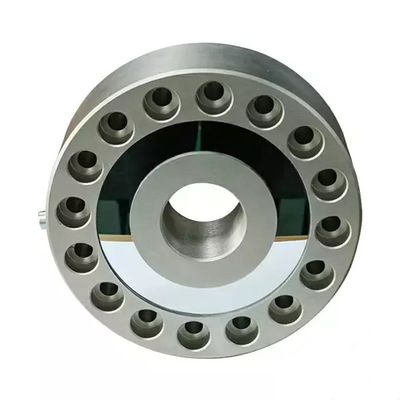

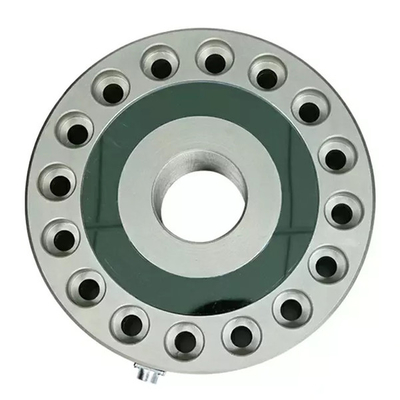

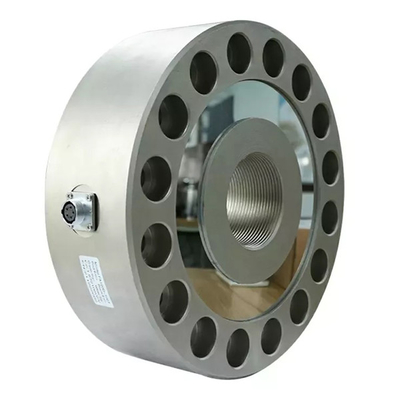

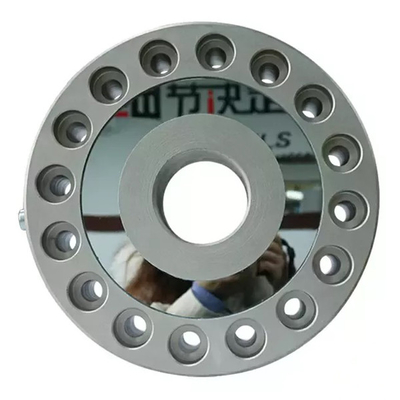

100-250t Spoke Type Load Cell
1. Descriptions
100-250t Spoke Type Load Cell FA120D belongs to FA120 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, FA120D can be used to measure load 100t,150t,200t and 250t capacity, its Input impedance range is 780±20Ω and its Output impedance range is 700±10Ω, its Zero Balance range is ±1%F.S..
2. Specifications
| Product name | Spoke Type Load Cell |
| Capacity | 100,150,200,250t |
| Rated output | 2.0±1%mV/V |
| Zero Balance | ±1%F.S. |
| Creep(30min) | ≤0.1%F.S. |
| Non-linearity | ≤0.1%F.S. |
| Hysteresis | ≤0.1%F.S. |
| Repeatability | ≤0.05%F.S. |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -10~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Aviation plug ⌀6x5m |
3. Dimension
4. Application
100-250t Spoke Type Load Cell FA120D can be used for various electronic scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
