Product Details:
|
| Product Name: | Tension Compression Force Sensor | Capacity: | 50,100,200,500,1000kg |
|---|---|---|---|
| Rated Output: | 1.5±10%mV/V | Non-linearity: | ≤0.2%F.S. |
| Repeatability: | ≤0.1%F.S. | Material: | Stainless Steel |
| High Light: | 50kg compression force transducer,1000kg compression force transducer,700 ohm strain gauge force sensor |
||

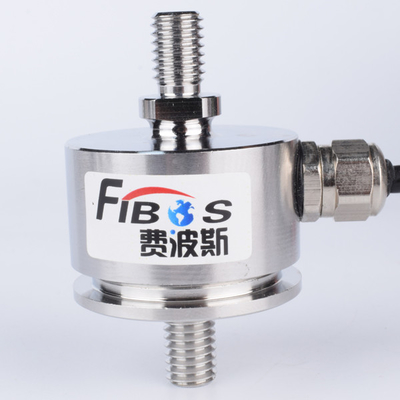

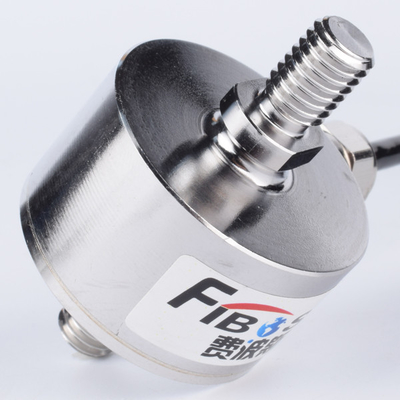

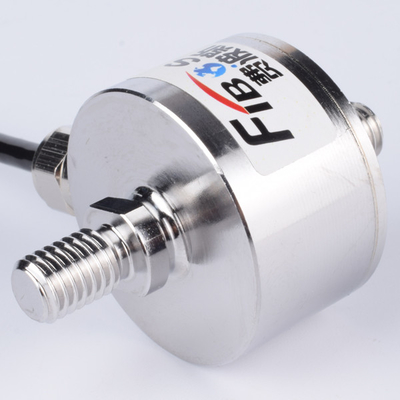

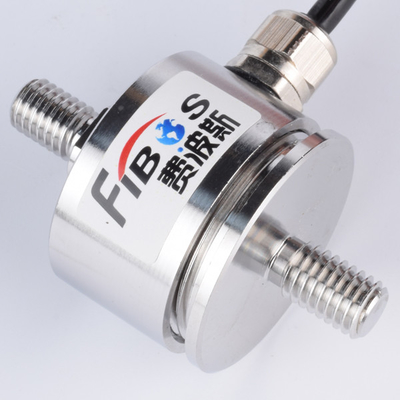

50-1000kg Stainless Steel Tension Compression Force Sensor
1. Descriptions
50-1000kg Stainless Steel Tension Compression Force Sensor FA205 is a model of our brand FIBOS FA2-Series, Tension Compression Force Sensor FA205 can be used to measure tension force and compression force 50kg,100kg,200kg,500kg and 1000kg, its Non-linearity ≤0.2%F.S., its Creep(30min),Hysteresis and Repeatability all ≤0.1%F.S..
2. Specifications
| Product name | Tension Compression Force Sensor |
| Capacity | 50,100,200,500,1000kg |
| Rated output | 1.5±10%mV/V |
| Zero Balance | ±0.05mV/V |
| Creep(30min) | ≤0.1%F.S. |
| Non-linearity | ≤0.2%F.S. |
| Hysteresis | ≤0.1%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 780±10Ω |
| Output impedance | 700±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀4x3000mm |
| Weight | 0.3kg |
| Material | Stainless steel |
3. Dimension
4. Application
50-1000kg Stainless Steel Tension Compression Force Sensor FA205 can be used for tensile testing of ropes.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
