Product Details:
|
| Product Name: | Tension Compression Force Sensor | Capacity: | 1t,2t |
|---|---|---|---|
| Rated Output: | 1.5±10%mV/V | Non-linearity: | ≤0.1%F.S. |
| Repeatability: | ≤0.1%F.S. | Material: | Stainless Steel |
| High Light: | 1 ton tension force sensor,2 ton tension force sensor,700 ohms high capacity load cell |
||

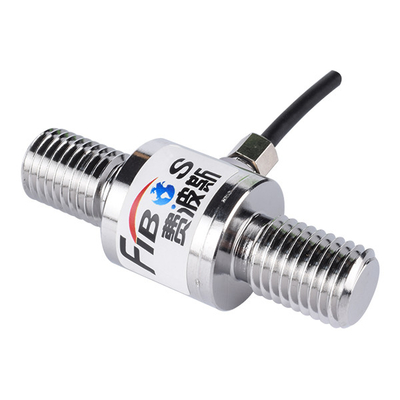

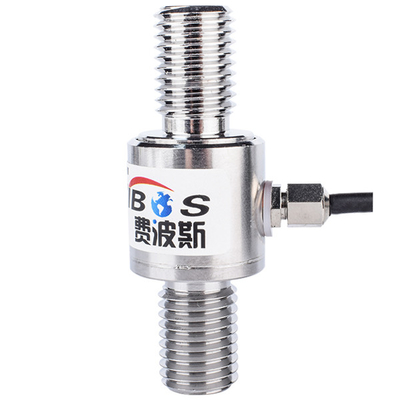

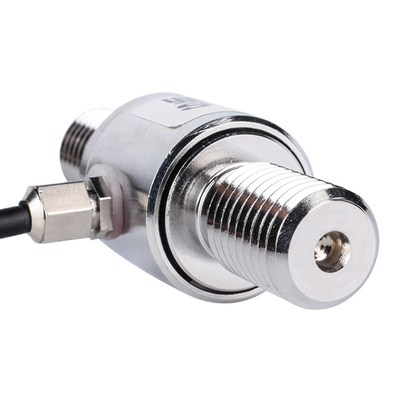

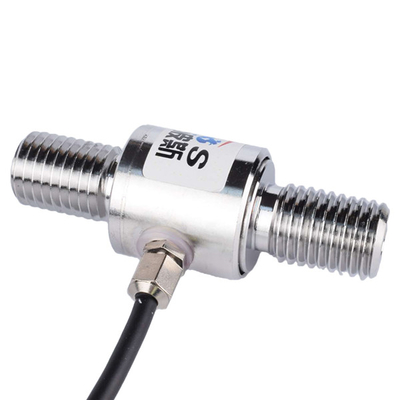

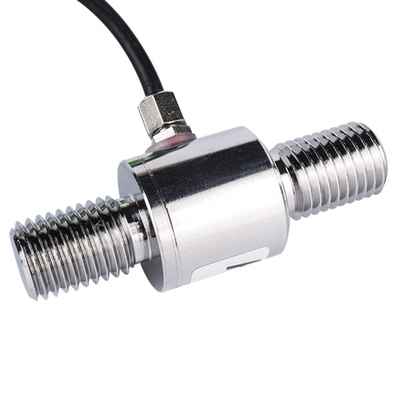

1-2t Stainless Steel Tension Compression Force Sensor
1. Descriptions
1-2t Stainless Steel Tension Compression Force Sensor FA207 is a model of our brand FIBOS FA2-Series, Tension Compression Force Sensor FA207 can be used to measure tension and compression force 1t and 2t capacity, its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.1%F.S., its Zero Balance range is ±0.05mV/V.
2. Specifications
| Product name | Tension Compression Force Sensor |
| Capacity | 1t,2t |
| Rated output | 1.5±10%mV/V |
| Zero Balance | ±0.05mV/V |
| Creep(30min) | ≤0.1%F.S. |
| Non-linearity | ≤0.1%F.S. |
| Hysteresis | ≤0.1%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 700±5Ω |
| Output impedance | 700±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀3x3000mm |
| Weight | 0.2kg |
| Material | Stainless steel |
3. Dimension
4. Application
1-2t Stainless Steel Tension Compression Force Sensor FA207 can be used for tensile testing machine.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
