Product Details:
|
| Product Name: | 3 Axis Force Sensor | Capacity(N): | X:50/100/200/500/1000/2000/5000 Y:50/100/200/500/1000/2000/5000 Z:50/100/200/500/1000/2000/5000 |
|---|---|---|---|
| Rated Output: | 1.0mV/V | Non-linearity: | 0.1%F.S. |
| Repeatability: | 0.1%F.S. | IP Class: | IP66 |
| Highlight: | IP66 triaxial load cell,xyz triaxial load cell,50n axial force sensors |
||

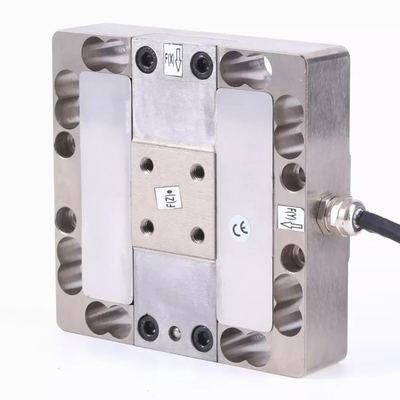

XYZ 50N 100N 200N 500N 1000N 2000N 5000N IP66 3 Axis Force Sensor
1. Descriptions
XYZ 50N 100N 200N 500N 1000N 2000N 5000N IP66 3 Axis Force Sensor FA704 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA704 can be used to measure 3 axis force, its X axis, Y axis and Z axis force range are all the same 50N,100N,200N,500N,1000N,2000N and 5000N capacity, its Rated output is 1.0mV/V, its Zero Balance range is ±2%F.S..
2. Specifications
| Product name | 3 Axis Force Sensor |
| Capacity(N) |
X:50/100/200/500/1000/2000/5000 Y:50/100/200/500/1000/2000/5000 Z:50/100/200/500/1000/2000/5000 |
| Rated output | 1.0mV/V |
| Zero Balance | ±2%F.S. |
| Non-linearity | 0.1%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.1%F.S. |
| Interference error | 0.3%F.S. |
| Temp.effect on output | 0.1%F.S./10 ℃ |
| Temp.effect on zero | 0.1%F.S./10 ℃ |
| Input resistance | 785±10Ω |
| Output resistance |
700±10Ω |
| Insulation resistance | ≥5000MΩ/1000VDC |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -20~75 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| Recommen excitation | 5~12V |
| Maximum excitation | 15V |
| Cable size | ⌀5X4000mm |
| IP Class | IP66 |
3. Dimension
4. Application
XYZ 50N 100N 200N 500N 1000N 2000N 5000N IP66 3 Axis Force Sensor FA704 could be used for robot polishing three-axis force detection.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
