Product Details:
|
| Product Name: | 3 Axis Force Sensor | Capacity: | Fx/Fy/Fz:10,50,100,500kg Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.02%F.S. Or Customized | Non-linearity: | ≤0.03%F.S. Or Customized |
| Hysteresis: | ≤0.02%F.S. Or Customized | Repeatability: | ≤0.02%F.S. Or Customized |
| High Light: | FIBOS 0.02 waterproof force sensor,0.02 waterproof force sensor FIBOS,RoHS 0.02 waterproof force sensors |
||

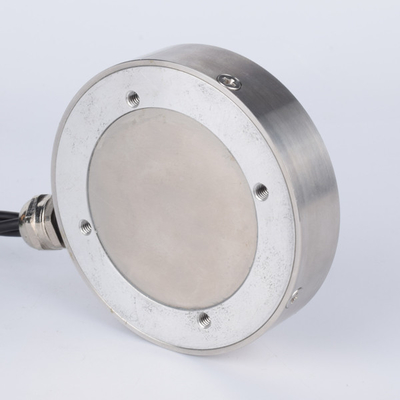

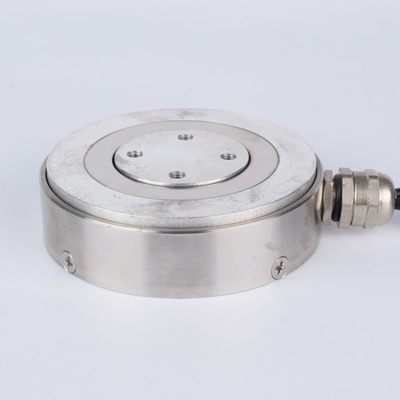

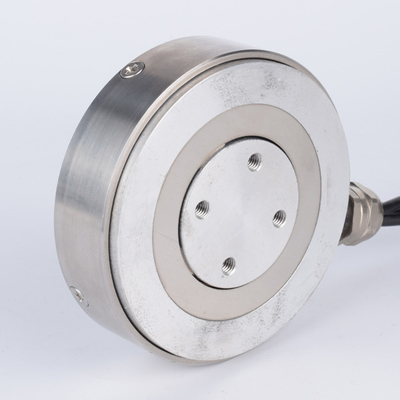

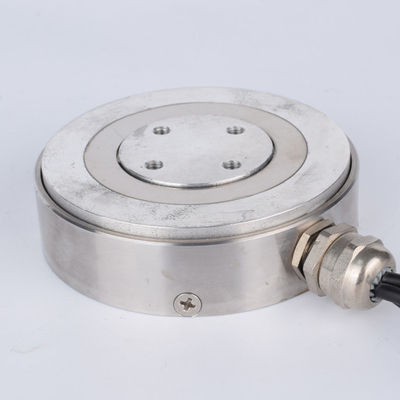

XYZ 10,50,100,500kg Or Customized 3 Axis Force Sensor
1. Descriptions
XYZ 10,50,100,500kg Or Customized 3 Axis Force Sensor FA730 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA730 can be used to measure 3 axis force, its X axis,Y axis and Z axis force range are all the same 10kg,50kg,100kg and 500kg or customized capacity, its Creep(30min),Hysteresis and Repeatability all the same ≤0.02%F.S. or can be customized, its Hysteresis ≤0.02%F.S. or can also be customized.
2. Specifications
| Product name | 3 Axis Force Sensor |
| Capacity | Fx/Fy/Fz:10,50,100,500kg or customized |
| Rated output | 1.2±30%mV/V |
| Zero Balance | ±1%mV/V |
| Creep(30min) | ≤0.02%F.S. or customized |
| Non-linearity | ≤0.03%F.S. or customized |
| Hysteresis | ≤0.02%F.S. or customized |
| Repeatability | ≤0.02%F.S. or customized |
| Input impedance | 385±20Ω |
| Output impedance | 350±10Ω |
| Temp.effect on output | 0.05%F.S./10°C |
| Temp.effect on zero | 0.05%F.S./10°C |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10-60°C |
| Operating Temp Range | -20-80°C |
| Safe overload | 120%F.S. |
| Ultimate overload | 150%F.S. |
| Cable size | ⌀3x3500mm or customized |
| Material | Stainless steel or customized |
3. Dimension
Need to be customized
4. Application
XYZ 10,50,100,500kg Or Customized 3 Axis Force Sensor FA730 can be widely used in various industrial force measurement situations.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
