Product Details:
|
| Product Name: | 3 Axis Force Sensor | Capacity: | X:50-300kg Y:50-300kg Z:50-300kg |
|---|---|---|---|
| Rated Output: | 1.0±10%mV/V | Non-linearity: | ≤0.05%F.S. |
| Repeatability: | ≤0.05%F.S. | Material: | Stainless Steel |
| High Light: | 50kg 3 Axis Force Sensor,300kg 3 Axis Force Sensor,0.05% stainless steel load cell |
||

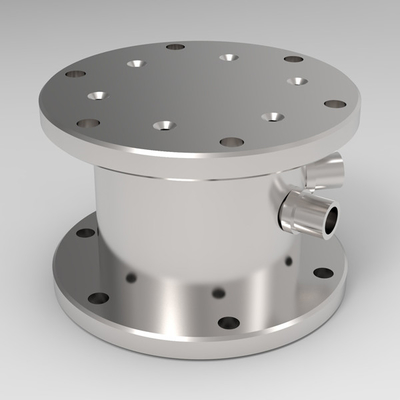

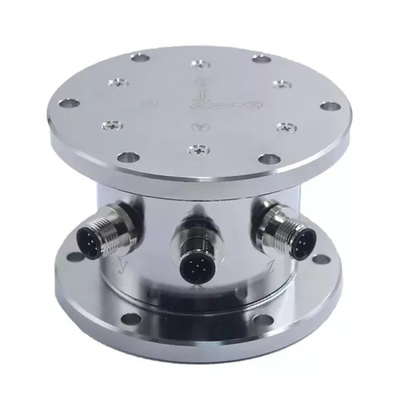

XYZ 50-300kg Stainless Steel 3 Axis Force Sensor
1. Descriptions
XYZ 50-300kg Stainless Steel 3 Axis Force Sensor FA728 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA728 can be used to measure 3-axis force, its X axis,Y axis,Z axis force ranges the same from 50kg up to 300kg capacity, its Rated output range is 1.0±10%mV/V, and its Zero Balance range is ±1%mV/V.
2. Specifications
| Product name | 3 Axis Force Sensor |
| Capacity |
X:50-300kg Y:50-300kg Z:50-300kg |
| Rated output | 1.0±10%mV/V |
| Zero Balance | ±1%mV/V |
| Creep(30min) | ≤0.05%F.S. |
| Non-linearity | ≤0.05%F.S. |
| Hysteresis | ≤0.05%F.S. |
| Repeatability | ≤0.05%F.S. |
| Input impedance | 750±20Ω |
| Output impedance | 700±10Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Aviation plug |
| Material | Stainless steel |
3. Dimension
4. Application
XYZ 50-300kg Stainless Steel 3 Axis Force Sensor FA728 can be used for electric actuators.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
