Product Details:
|
| Product Name: | 3 Axis Force Sensor | Capacity: | Fx/Fy/Fz:0.5,1,3,5,10,30kN Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.08%F.S. Or Customized | Non-linearity: | ≤0.07%F.S. Or Customized |
| Hysteresis: | ≤0.06%F.S. Or Customized | Repeatability: | ≤0.08%F.S. Or Customized |
| High Light: | 30kn 3 Axis Force Sensor,stainless steel 3 Axis Force Sensor,1mv v precision load cell |
||

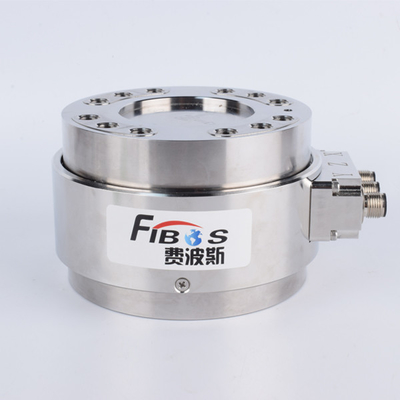

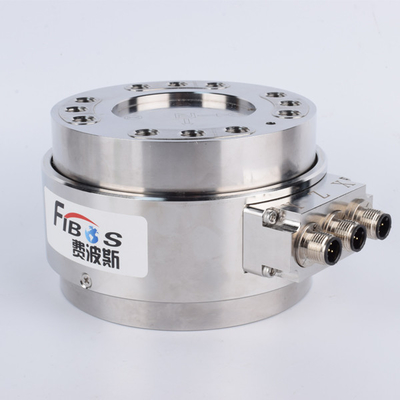

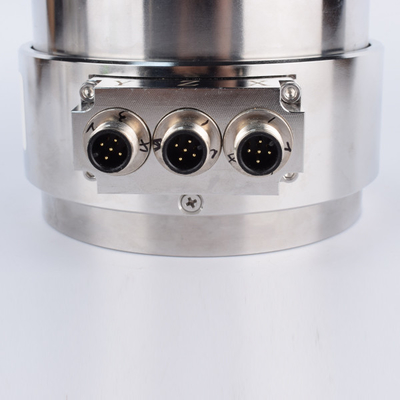

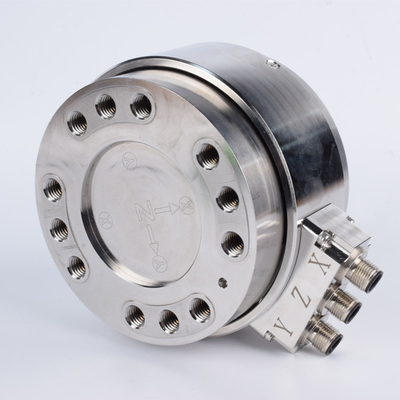

XYZ 0.5,1,3,5,10,30kN Or Customized 3 Axis Force Sensor
1. Descriptions
XYZ 0.5,1,3,5,10,30kN Or Customized 3 Axis Force Sensor FA731O belongs to FA731, 3 Axis Force Sensor FA731O can be used to measure three-axis force, its X axis,Y axis,Z axis force range all are same 0.5kN,1kN,3kN,5kN,10kN,30kN or customized capacity, its Creep(30min) and Repeatability both ≤0.08%F.S. or can be customized.
2. Specifications
| Product name | 3 Axis Force Sensor |
| Capacity |
Fx/Fy/Fz:0.5,1,3,5,10,30kN or customized |
| Rated output | 1.2±30%mV/V |
| Zero Balance | ±1%mV/V |
| Creep(30min) | ≤0.08%F.S. or customized |
| Non-linearity | ≤0.07%F.S. or customized |
| Hysteresis | ≤0.06%F.S. or customized |
| Repeatability | ≤0.08%F.S. or customized |
| Input impedance | 385±20Ω |
| Output impedance | 350±10Ω |
| Temp.effect on output | 0.05%F.S./10°C |
| Temp.effect on zero | 0.05%F.S./10°C |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10-60°C |
| Operating Temp Range | -20-80°C |
| Safe overload | 120%F.S. |
| Ultimate overload | 150%F.S. |
| Cable size | ⌀5x2300mm or customized |
| Material | Stainless steel or customized |
3. Dimension
Need to be customized
4. Application
XYZ 0.5,1,3,5,10,30kN Or Customized 3 Axis Force Sensor FA731O could be used in the grinding industry.
5.FAQ
Q1: What is your terms of packing?
A: Generally we pack our products in neutral brown cartons.
Q2: What is your terms of payment?
A: L/C, Western Union, D/P, T/T, Paypal, MoneyGram, etc.
Q3:What is your terms of delivery?
A: EXW, FOB, CIF and CFR.
Q4: How about yout delivery time?
A: Generally it will take 10-15 days after the receipt of your down payment. The specific delivery time depends on the items and the quality of your order.
Q5: Can you produce according to the samples?
A: Yes,we can produce according to your samples or technical drawings.
Q6: What is your sample policy?
A; We can supply the sample with discount if we have ready parts in stock, and customers will pay for the courier cost.
Q7: How do you ensure quality of your products?
A: We have a complete quality control system, all of our products are fully checked by IQC, IPQC and OQC departments before shipping to our clients.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
