Product Details:
|
| Product Name: | 3 Axis Force Sensor | Capacity: | X/Y/Z:5t |
|---|---|---|---|
| Rated Output: | ≈1.0±10%mV/V | Non-linearity: | ≤0.3%F.S. |
| Repeatability: | ≤0.2%F.S. | Material: | Stainless Steel |
| High Light: | 12v 3 Axis Force Sensor,300 ohm 3 Axis Force Sensor,700 ohm multi axis load cell |
||

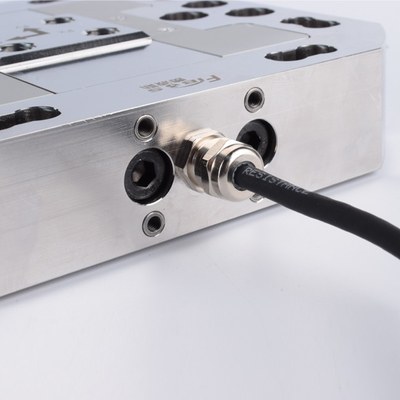

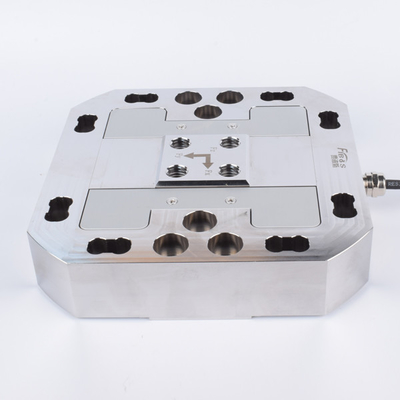

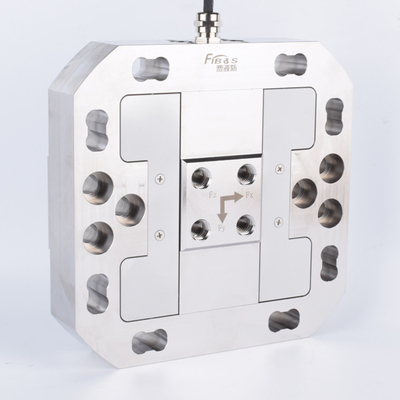

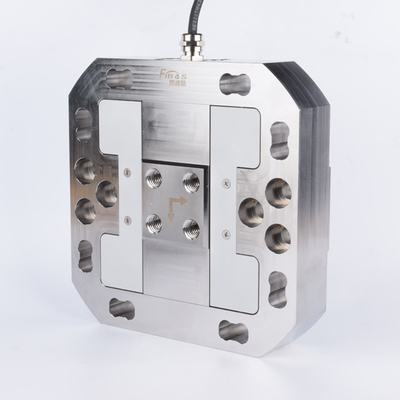

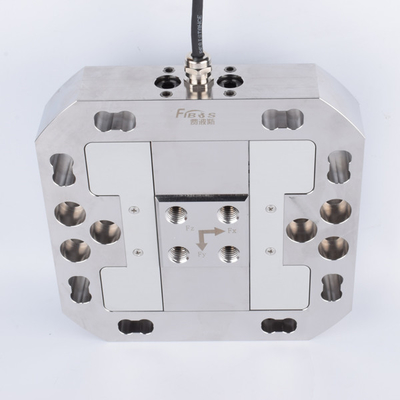

XYZ 5t Stainless Steel Customized Non-Standard 3 Axis Force Sensor
1. Descriptions
XYZ 5t Stainless Steel Customized Non-Standard 3 Axis Force Sensor FA704D is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA704D belongs to FA704, it can be used to measure three-axis force, its X axis,Y axis and Z axis force are the same 5t capacity, its Rated output range is ≈1.0±10%mV/V, and its Zero Balance range is ±1%mV/V.
2. Specifications
| Product name | 3 Axis Force Sensor |
| Capacity | X/Y/Z:5t |
| Rated output | ≈1.0±10%mV/V |
| Zero Balance | ±1%mV/V |
| Creep(30min) | ≤0.3%F.S. |
| Non-linearity | ≤0.3%F.S. |
| Hysteresis | ≤0.3%F.S. |
| Interference error | ≤1%F.S. |
| Repeatability | ≤0.2%F.S. |
| Input impedance | 350/780±10Ω |
| Output impedance | 300/700±5Ω |
| Temp.effect on output | 0.1%F.S./10 ℃ |
| Temp.effect on zero | 0.1%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -20~75 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | 3m |
| Material | Stainless steel |
3. Dimension
4. Application
XYZ 5t Stainless Steel Customized Non-Standard 3 Axis Force Sensor FA704D could be used for robot actuation force measurement.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
