Product Details:
|
| Product Name: | 3 Axis Force Sensor | Capacity: | 50kg |
|---|---|---|---|
| Rated Output: | 1.5±10%mV/V | Non-linearity: | ≤0.5%F.S. |
| Repeatability: | ≤0.5%F.S. | Safe Load Limit: | 150%F.S. |
| High Light: | 50kg biaxial load cell,700 ohm biaxial load cell,xy 2 axis force sensor |
||

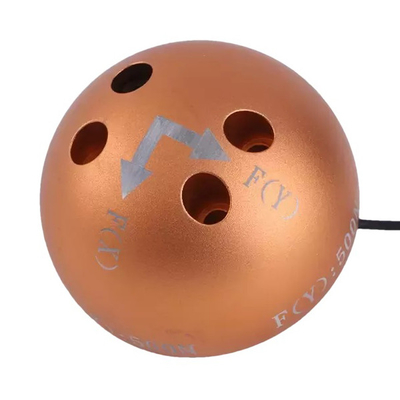

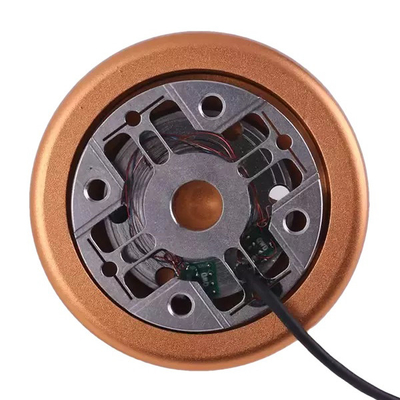

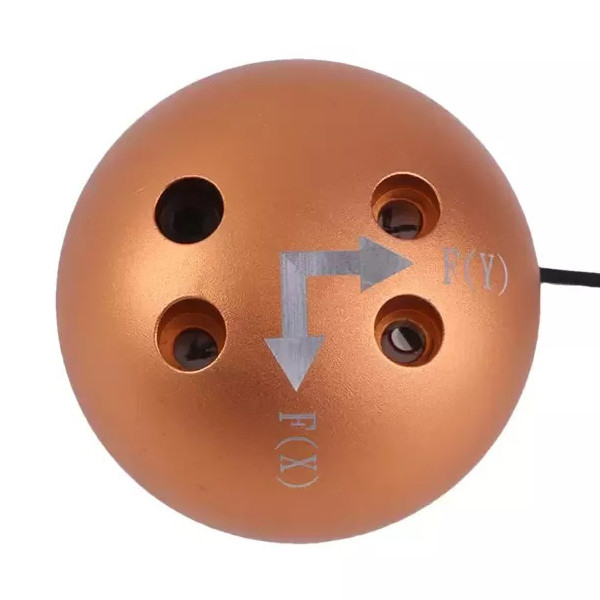

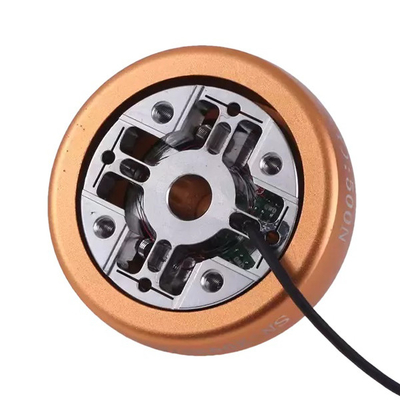

50kg 2-Axis Force Sensor 3 Axis Force Sensor
1. Descriptions
50kg 2-Axis Force Sensor 3 Axis Force Sensor FA708 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA708 can be used to measure 2 axis force, its X axis and Y axis force range are the same 50kg capacity, its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.5%F.S., its Temp.effect on output and Temp.effect on zero are both 0.1%F.S./10 ℃.
2. Specifications
| Product name | 3 Axis Force Sensor |
| Capacity |
X:50kg Y:50kg |
| Rated output | 1.5±10%mV/V |
| Zero Balance | ±1%F.S. |
| Creep(30min) | ≤0.5%F.S. |
| Non-linearity | ≤0.5%F.S. |
| Hysteresis | ≤0.5%F.S. |
| Repeatability | ≤0.5%F.S. |
| Input Resistance | 720±20Ω |
| Output Resistance | 700±5Ω |
| Temp.effect on output | 0.1%F.S./10 ℃ |
| Temp.effect on zero | 0.1%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe Load Limit | 150%F.S. |
| Breaking Load | 200%F.S. |
| Cable size | ⌀2x3000mm |
3. Dimension
4. Application
50kg 2-Axis Force Sensor 3 Axis Force Sensor FA708 can be used for bearings.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
