Product Details:
|
| Product Name: | Tension Force Sensor | Capacity: | 60T |
|---|---|---|---|
| Rated Output: | 1.5±20%mV/V | Non-linearity: | ±0.4%F.S. |
| Repeatability: | ±0.1%F.S. | Safe Overload: | 150%F.S. |
| High Light: | 60 ton tension force transducer,0.4% tension force transducer,20v strain gauge force transducer |
||

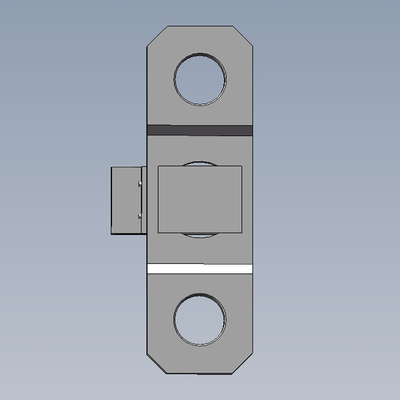

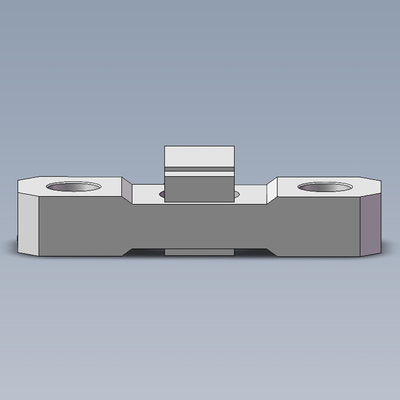

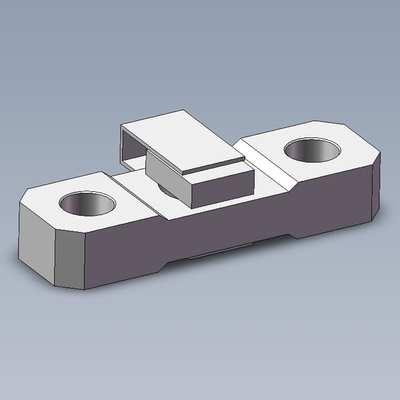

60T Tension Force Sensor
1. Descriptions
60T Tension Force Sensor FA907 is a model of our brand FIBOS FA9-Series, Tension Force Sensor FA907 can be used to measure tension force 60T capacity, its Zero Balance is 3.92-4.08mA, its Creep(30min) ≤0.05%F.S., its Non-linearity ≤0.4%F.S., its Hysteresis and Repeatability both ≤0.1%F.S., its Cable size is Standard socket M12*1.
2. Specifications
| Product name | Tension Force Sensor |
| Capacity | 60T |
| Rated output | 1.5±20%mV/V |
| Zero Balance | 3.92-4.08mA |
| Creep(30min) | ≤0.05%F.S. |
| Non-linearity | ≤0.4%F.S. |
| Hysteresis | ≤0.1%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 350±20Ω |
| Output impedance | 350±10Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 20V |
| Compensated Temp Range | -20~70 ℃ |
| Operating Temp Range | -40~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S |
| Cable size | M12*1(Standard socket) |
3. Dimension
4. Application
60T Tension Force Sensor FA907 can be applied to crane scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
