Product Details:
|
| Product Name: | Tension Force Sensor | Capacity: | 10,20,50,100,200,500,1000kg Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.033%F.S. | Non-linearity: | ≤0.035%F.S. |
| Hysteresis: | ≤0.033%F.S. | Repeatability: | ≤0.035%F.S. |
| High Light: | 10kg cable tension load cell,1000kg cable tension load cell,aluminum load cell 100kg |
||

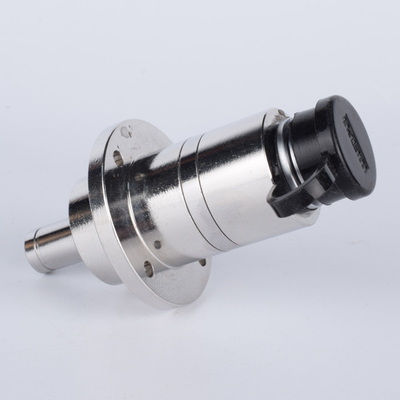

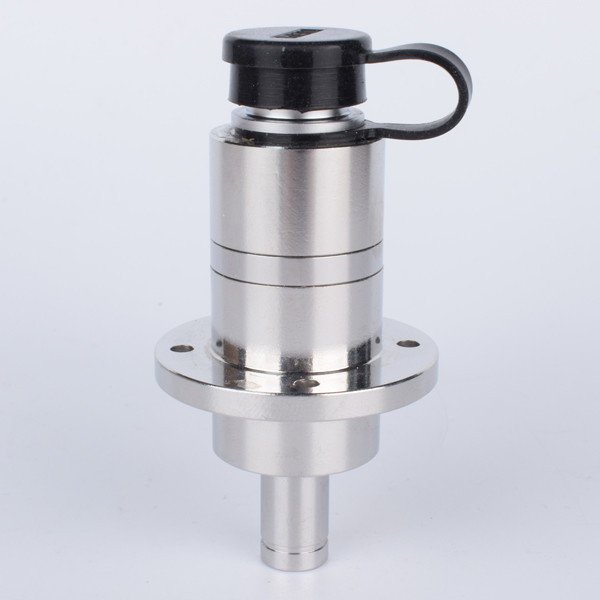

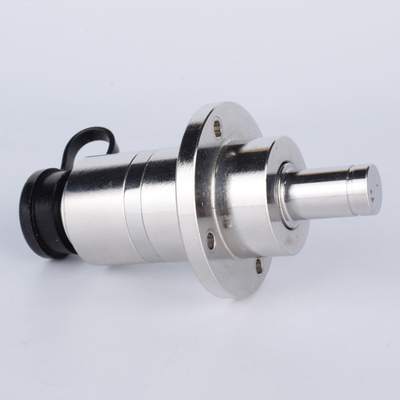

10,20,50,100,200,500,1000kg Or Customized Tension Force Sensor
1. Descriptions
10,20,50,100,200,500,1000kg Or Customized Tension Force Sensor FA926 is a model of our brand FIBOS FA9-Series, it's in Tension Force Sensor category, FA926 can be used to measure tension force ranges from 10kg,20kg,50kg,100kg,200kg,500kg and 1000kg or customized capacity, its Rated output range is 0.6±20%mV/V.
2. Specifications
| Product name | Tension Force Sensor |
| Capacity | 10,20,50,100,200,500,1000kg or customized |
| Rated output | 0.6±20%mV/V |
| Zero Balance | ±2%mV/V |
| Creep(30min) | ≤0.033%F.S. |
| Non-linearity | ≤0.035%F.S. |
| Hysteresis | ≤0.033%F.S. |
| Repeatability | ≤0.035%F.S. |
| Input impedance | 350±10Ω |
| Output impedance | 300±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -20~60 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀3x3500mm |
| Material | Aluminum alloy or customized |
| Weight | 0.17kg or customized |
3. Dimension
Need to be customized
4. Application
10,20,50,100,200,500,1000kg Or Customized Tension Force Sensor FA926 can be used in the metallurgical powder industry.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
