Product Details:
|
| Product Name: | Tension Force Sensor | Capacity: | 5,10,20,30,50kg Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.02%F.S. Or Customized | Non-linearity: | ≤0.02%F.S. Or Customized |
| Hysteresis: | ≤0.016%F.S. Or Customized | Repeatability: | ≤0.018%F.S. Or Customized |
| High Light: | aviation plug 50kg load cell FIBOS,FIBOS aviation plug 50kg load cell,FA927 aviation plug 50kg load cell |
||

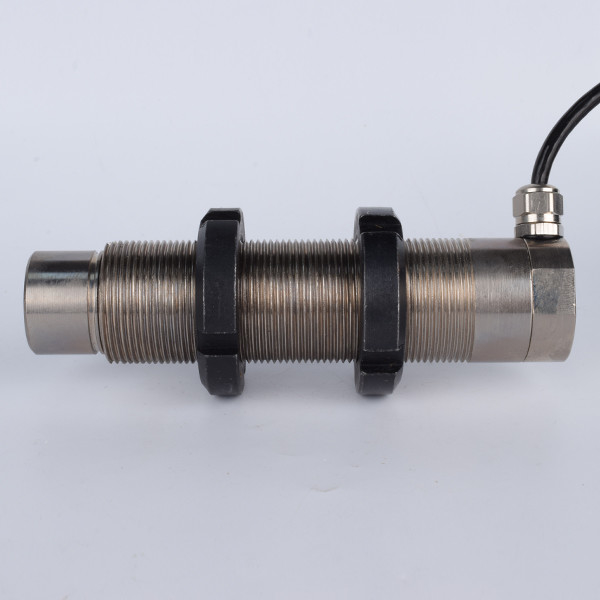

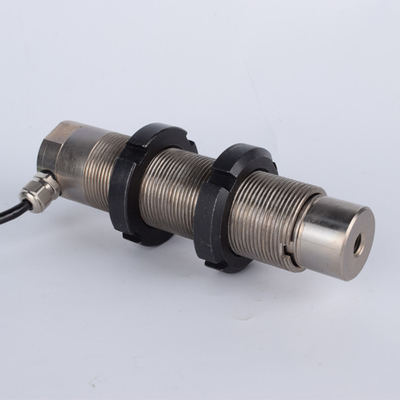

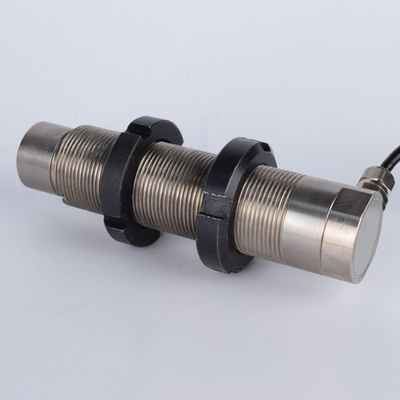

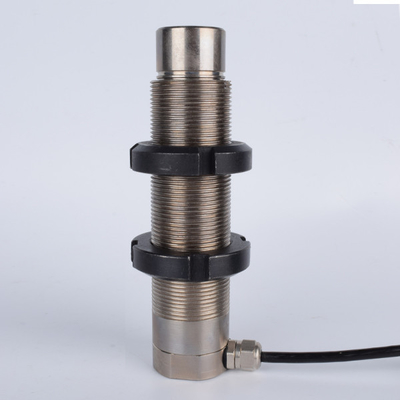

5,10,20,30,50kg Or Customized Tension Force Sensor
1. Descriptions
5,10,20,30,50kg Or Customized Tension Force Sensor FA927 is a model of our brand FIBOS FA9-Series, Tension Force Sensor FA927 can be used to measure tension force 5kg,10kg,20kg,30kg,50kg or customized capacity, its Rated output range is 0.6±20%mV/V, its Zero Balance range is ±2%mV/V, its Weight is 0.23kg or can be customized.
2. Specifications
| Product name | Tension Force Sensor |
| Capacity | 5,10,20,30,50kg or customized |
| Rated output | 0.6±20%mV/V |
| Zero Balance | ±2%mV/V |
| Creep(30min) | ≤0.02%F.S. or customized |
| Non-linearity | ≤0.02%F.S. or customized |
| Hysteresis | ≤0.016%F.S. or customized |
| Repeatability | ≤0.018%F.S. or customized |
| Input impedance | 350±10Ω |
| Output impedance | 300±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -20~60 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Aviation plug |
| Material | Aluminum alloy or customized |
| Weight | 0.23kg or customized |
3. Dimension
Need to be customized
4. Application
5,10,20,30,50kg Or Customized Tension Force Sensor FA927 could be applied to pneumatic and hydraulic equipment.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
