Product Details:
|
| Product Name: | Tension Compression Force Sensor | Capacity: | 10,20,50,100,200kg Or Customized |
|---|---|---|---|
| Creep(30min): | ≤0.1%F.S. Or Customized | Non-linearity: | ≤0.1%F.S. Or Customized |
| Hysteresis: | ≤0.1%F.S. Or Customized | Repeatability: | ≤0.1%F.S. Or Customized |
| High Light: | 10kg compression load cell sensor,200kg compression load cell sensor,350 ohm force measurement transducers |
||

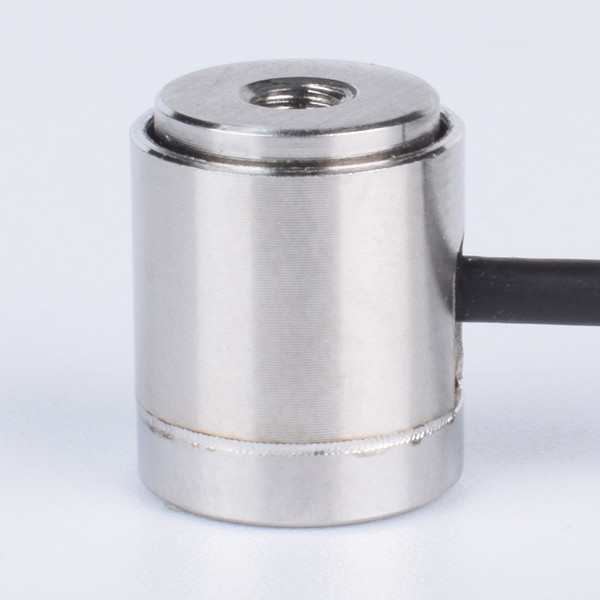

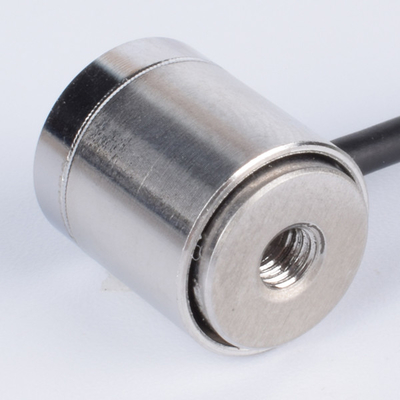

10,20,50,100,200kg Or Customized Tension Compression Force Sensor
1. Descriptions
10,20,50,100,200kg Or Customized Tension Compression Force Sensor FA401A is a model of Tension Compression Force Sensor, it belongs to FA401 in our brand FIBOS FA4-Series, it can be used to measure load 10kg, 20kg, 50kg, 100kg and 200kg or customized capacity, its Creep(30min), Non-linearity, Hysteresis and Repeatability all ≤0.1%F.S. or can be customized.
2. Specifications
| Product name | Tension Compression Force Sensor |
| Capacity | 10,20,50,100,200kg or customized |
| Rated output | 2.0±10%mV/V |
| Zero Balance | ±0.05mV/V |
| Creep(30min) | ≤0.1%F.S. or customized |
| Non-linearity | ≤0.1%F.S. or customized |
| Hysteresis | ≤0.1%F.S. or customized |
| Repeatability | ≤0.1%F.S. or customized |
| Input impedance | 650/350±5Ω |
| Output impedance | 650/350±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -20~60 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀2x3000mm or customized |
| Weight | 0.1kg or customized |
| Material | Stainless steel or customized |
3. Dimension
Need to be customized
4. Application
10,20,50,100,200kg Or Customized Tension Compression Force Sensor FA401A could also be used in tension force measuring and compression load measuring in industrial industry such like FA401.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
